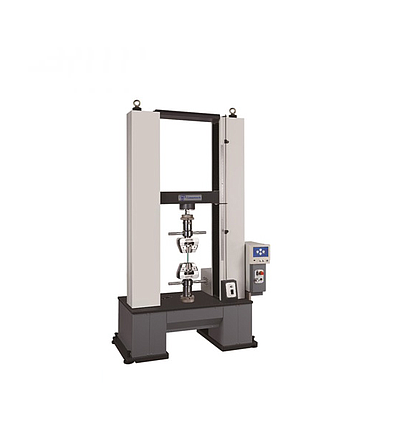

Cometech QC-500M2F COMPUTERIZED TENSILE TESTING MACHINE (500kN, 1500mm)

Max. capacity: 500 KN

Units: Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short) ; Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg

Force Resolution: 31 bits

Force Precision: 1/100,000

Test Stroke(w/o grip): 1500 mm

Stroke resolution: 0.0001mm

Space between columns: 550 mm

Speed range: 0.0002 ~ 330 mm/min

Speed accuracy: High speed mode: 0.02 ~ 330 mm/min ; Low speed mode: 0.0002~2 mm/min

PC-Port: 1200Hz (Max.)

Motor type: Servo motor

Hardware safety protection: Up/down limit, emergency stop button

Power Supply:3 phase 200V -240 V, 5A

Dimension of Machine: 155 x 85 x 295 cm

Weight of Machine: Around 2350kg　

Option:

- Display panel: EM2FTP-001 or Software: SM2F0-04 or all (nessesary)

- Long extensometerQC-557

- Grips (nessesary)
