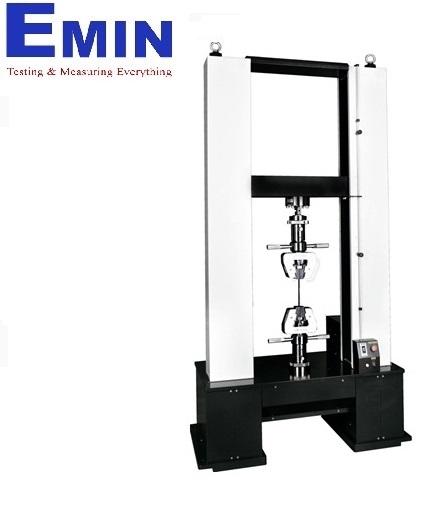

Cometech QC-500M1 COMPUTERIZED TENSILE TESTING MACHINE (500kN)

Manufacturer: Cometech

Model: QC-500M1

Origin: Taiwan

Warranty: 12 months

Max. capacity:　 500 KN

Force Resolution:　 0.001 mm

Test Stroke(w/o grip):　 1600 mm

Space between columns:　 550 mm

Speed range:　 0.08 ~ 333 mm/min

Speed precision: 0.08 ~ 333 mm/min ± 3%

PC-Port:　 TCP/IP

Data sample rate:　 Maximum 100 Hz

Motor type:　 Servo motor

Hardware safety protection:　 Up/down limit, emergency stop button

Transmission:　 Precise reducer, ball screw. It can reduce noise and transmission loses and increase transmission efficiency.

Power Supply:　 3 phase200~240VAC，30A

Dimension:　 150 × 85 × 295 cm

Weight:　 2350 kg
