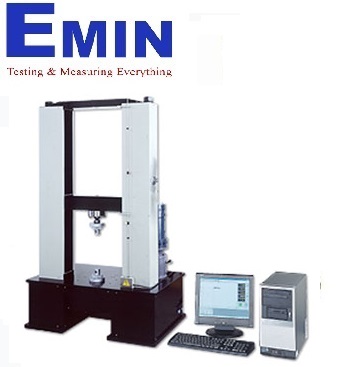

Cometech QC-500A2 PSTC Universal testing machine (500kN)

Manufacturer: Cometech

Model: QC-500A2

Origin: Taiwan

Warranty: 12 months

Capacity:　 500KN

Stroke(without grips):　 1600 mm

Speed range:　 0.1 ~ 300 mm/min

Speed accuracy:　 0.1 ~ 3 mm/min ± 2%; 3 ~ 300 mm/min ± 1%

Space between columns:　 550 mm

Force resolution:　 1/20,000

Stroke resolution:　 0.0001 mm

PC Connection: 　 USB

Motive force:　 Servo motor driver

Transmission method:　 Precise reducer, ball screw. It can reduce noise and transmission missing and increase transmission efficiency.

Power:　 3 phase 200~240VAC,30A

Dimension:　 150 × 85 × 295 cm

Weight:　 2350KG

Catalog
