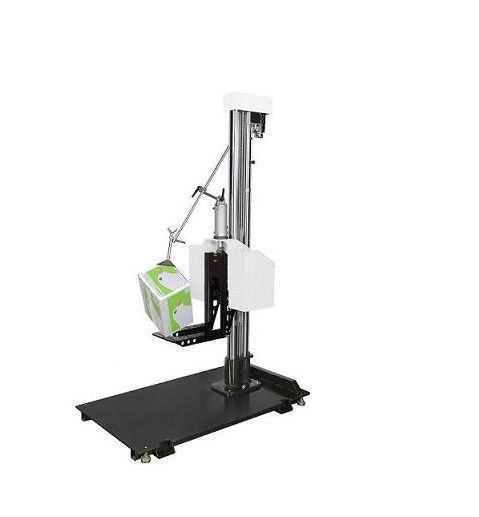

Cometech QC-113A Pneumatic Type Drop Tester

Testing Height: 30 ~ 130 cm adjustable

Motor speed: around 2000mm/Min

Dropping platform Size: Standard size: 27 ×47cm (W ×D), measuring height range: 30 ~ 130 cm

Max. Load of Dropping platform: Approx 60kg

Base: 85 ×95 cm (W ×D)

Max. Allowance of testing package: 80 ×80 ×80cm

Dropping method: Electric button type - pneumatic cylinder controls dropping. Electric button type - pneumatic cylinder type returns to original drop- height position.

Power supply: Single phase, 220V, 50 / 60 HZ, 8A

Dimension: 85×150×230 cm ( W × D ×H )

Weight: 450 kgs

Accessory: edge grip to fix specimen falling from certain orientation
