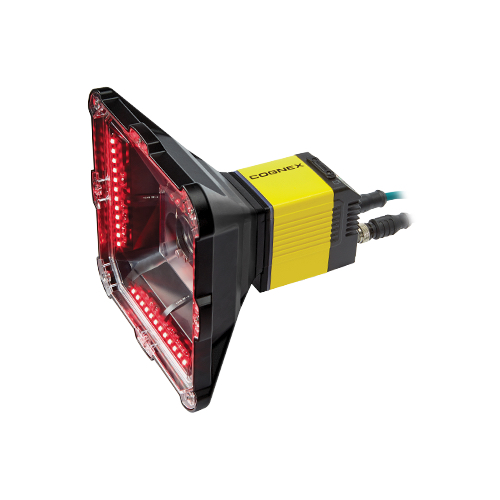

Cognex DataMan 475V-DPM Inline Barcode Verification (35x29mm; 3.75 mil)

Light Types: 660 nm, 45°, 4-quadrant 660 nm, 30°, 1-quadrant, 2-quadrant, 4-quadrant 660 nm, 90°

Barcodes: 2D: Data Matrix (ECC 200), QR Code, Micro QR Code, UPC/EAN, Code 128, Code 39

Field of View: 35x29mm

Working Distance: 41mm

Depth of Field (WD Tolerance): 5 mil symbols: +/- 1.5 mm. 15 mil symbols: +/- 2.5 mm

Minimum X-Dimension: 3.75 mil (0.095 mm)

Image Sensor:

Sony IMX264LLR

5 MP (2448 x 2048 pixels)

2/3 inch CMOS, global shutter

8.8 mm x 6.6 mm (H x V); 3.45 μm square pixels

Lens Type: Fixed focal length 35 mm, fixed f/4 aperture, 2/3 inch sensor format, C-mount lens (user cannot change lens)

Communication: Ethernet

Power: 24 VDC±10%, 1.5 A max (36 W peak)

Weight: 1002.7 g

Dimensions: 286x144x190mm

Standard: IP65 with appropriate cable and lens cover

Certifications: CE, TUV, FCC, KC

Industry Standard Compliance: ISO/IEC 15415, ISO/IEC 15416, ISO/IEC TR 29158, ISO/IEC 15426-1, ISO/IEC 15426-2

Application Standards: GS1, MIL-STD 130 UID, UDI, HIBCC, ISO 15434, Russian Crypto-Code, Custom Application Standards

Scan Speed: 2D: 10 codes/second

Maximum Linear Speed: 4.6 ft/sec (1.4 m/sec)

Coplanar Tolerance: +/- 2° coplanar
