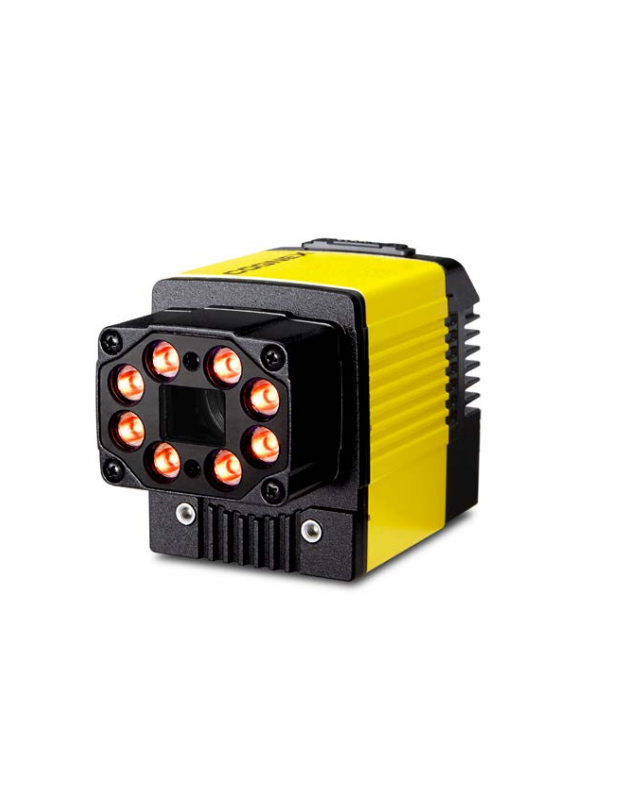

Cognex DataMan 475 Fixed-Mount Barcode Readers (2448 x 2048 CMOS 2/3″)

Algorithms: 1DMax, 2DMax, Hotbars, PowerGrid

Image Sensor: 2/3″ CMOS

Image Sensor Properties: Diagonal 11.1 mm; 3.45 µm square pixels

Resolution: 2448 x 2048

Electronic Shutter Speed: Min. exposure: 15 µs Max. exposure: 1000 µs with internal illumination/10000 µs with external illumination

Max Acquisition: up to 55 Hz

Lenses: Liquid lens  10 mm, 16 mm, 24 mm; C-mount 12 mm, 16 mm, 25 mm, 35 mm, 40 mm

Trigger and Tune Buttons: Yes; Quick Setup Intelligent Tuning

Aimer: Optional

Discrete Inputs: 2 fixed + () opto-isolated

Discrete Outputs: 2 fixed + () opto-isolated

Other I/O points: 2 user-configurable

Status Outputs: Beeper, 5 multifunctional LEDs, 10 LED bar array, 360-degree indicator

Lighting: Integrated LED, red, blue, or IR; integrated diffused, polarized, high power (HPIT) flashlight; multiple controllable external lighting options

Connectivity: Ethernet and serial

Protocols: RS-232, TCP/IP, PROFINET, EtherNet/IP(TM), SLMP, Modbus TCP, NTP, SFTP, FTP, MRS Java Scripting enabled for custom protocols

Power Consumption: 24 VDC ±10%, 1.5 A maximum (HPIL/HPIT1) 24 VDC, 250 mA maximum (reader) Supplied by LPS or NEC class 2 only

Weight: 373 g

Dimensions (L x W x H): 126.8 mm x 60.5 mm x 77.1 mm

Operating Temperature: 0–57 °C (32–134.6 °F)

Storage Temperature: -20–80 °C (-4–176 °F)

Humidity: < 95% non-condensing

Standard: IP67 with appropriate cables and lens cover included
