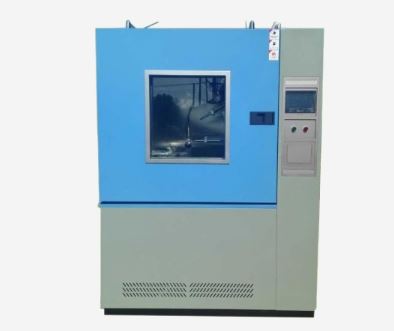

Symor TRX9K Rain Test chamber IPX9K (30° ± 5; 100-200mm)

Interior Dimension (mm): 1000*1000*1000 W*D*H

Exterior Dimension(mm): 1550*1300*2000 W*D*H

Water Spray Temperature: RT+10 ~ 85℃ (Adjustable)

Water Spray Angle: 0°，30°，60°，90°

Spray Nozzle: 4 nozzles, 30 seconds @each position

Spray Range: 30° ± 5°(Single hole); Space 100-200mm

Water Pressure: 8000-10000 Kpa (adjustable, set directly, it can display the real-time pressure value)

Water Flow Rate: 14L-16L/min

Testing Platform Speed: 1～10r/min

Test Platform Diameters: 300mm(it can be customized as per product size)

Test Platform Load: 15kg(it can be customized as per product weight)

Controller: Programmable touch screen controller with RS232 communication interface

Pressure Meter Alarm function: Power protection, timing (to be automatic stop), water protection,

motor overheating protection, water temperature overheating automatic drainage, water function

Operating Environment: No corrosive gas, flat, no vibration, avoid direct sunlight, temperature: +5~+35 C; humidity: 45～85％RH

Power Supply: 380V 50HZ or customized
