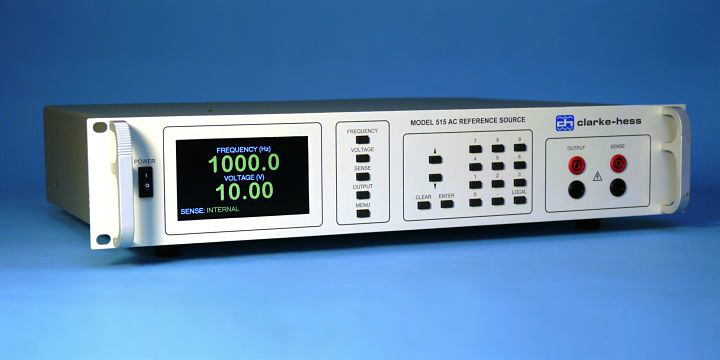

Clarke-hess 515 High Accuracy AC Reference Source (360Hz ~ 20kHz)

Frequency Range: 360Hz to 20kHz

Frequency Accuracy: ±0.01%

Output Voltage :1Vrms to 120Vrms

Resolution: 4 digits Voltage, 5 digits Frequency

Amplitude Accuracy

360Hz to 2kHz>2kHz to 5kHz>5kHz to 20kHz

1V to 8.000V 0.1% + 5mV 0.1% + 5mV 0.2% + 5mV

8.001V to 16.00V 0.1% + 10mV 0.15% + 10mV 0.2% + 10mV

16.01V to 32.00V 0.1% + 20mV 0.15% + 20mV 0.2% + 20mV

32.01V to 120.0V 0.1% + 60mV 0.15% + 60mV 0.2% + 60mV

Output Power

1V to 8.000V: 1.8A

8.001V to 16.00V: 0.94A

16.01V to 32.00V: 0.47A

30.01 to 120V: 0.125A

Harmonic Distortion :0.25%

Display High Resolution Color TFT

Size Approximately 17.3" W x 3.5" H x 13” D

Temperature range Operating: 0° to 40°C

Within specification: 23° ±5°C

Weight Approximately 13 pounds

Power supply 90 to 264V rms, 47 to 63Hz, 30VA max.
