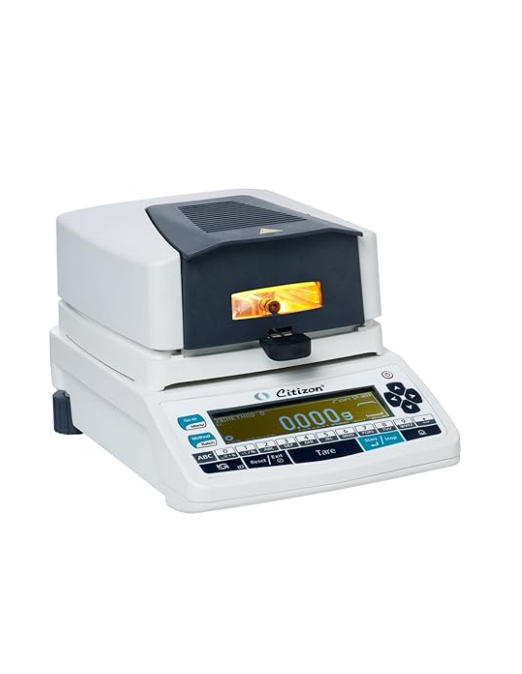

CITIZEN MB 50 Moisture Analyser Balance

Measurement Value

Readability: 0.01%

Readability (sd) for initial sample wt.= 2g: 0.1%

Readability (sd) for initial sample wt.= 10g: 0.03%

Evaluation

Units of Measurement: % M, %D, %R (ratio), Gm/Lt, %M Atro, %D Atro

Statistics: Method wise for each individual 40 methods or Batch wise for each individual 100 batches for last 9999 results

Data Storage: Last 1000 Moisture Determination results

Weighing Balance

Max. Sample weight: 50 g

Minimum Sample Weight: 0.2g

Readability: 0.001g

Drying Unit

Technology: Infra Red Halogen

Temperature range: 30º C to 200º C

Temperature increment: 1º C

Heating Profile: Standard, Gentle, Rapid, Steps, High Temperature

Swtich off Criteria: Auto, Manual, User Def Weight / Time, User Def % unit / time, Intelligent

User Support

Auto Method Development: Intelligent

Method Memory: 40

Batch Memory: 100

Method Designation: Alpha Numeric

Serial Number: YES

Compile: Yes (Method Linking)

Standby Temperature: 30 C to 100 C

Display: Graphical LCD display with LED backlit

Data Interface:RS232C Bidirectional, USB, Ethernet, PS2

Print: GLP / GMP Compliant, User Configurable

Quality Management

Test: Weighing and Heater

Weighing in Aid: yes

Password: Method, Setting, Print Format, Data Delete, Calibration, Drying

Miscellaneous

Power Supply: 230 v/50Hz or 115v/60Hz

Power Consumption (Watt): Max 415

Housing Dimension mm: 211 (w) x 342 (d) x 187 (h)

Weight Approx: 5 kg
