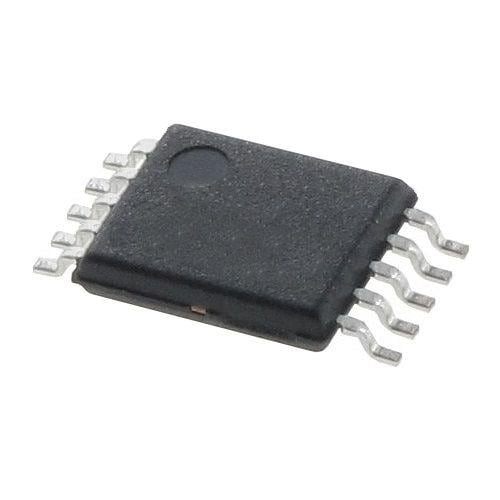

Cirrus Logic CS2100CP-CZZ Clock Synthesizers / Jitter Cleaners IC Gen Purpose PLL Clock Multi 8-75MHz
Manufacturer: Cirrus Logic Model: CS2100CP-CZZ - Contact
Input Level: Clock
Unit Weight: 112.800 mg
Output Level: PLL
Mounting Style: SMD/SMT
Development Kit: CDK2000-CLK
Max Output Freq: 75 MHz
Number of Outputs: 2 Output
Moisture Sensitive: Yes
Supply Voltage - Max: 3.5 V
Supply Voltage - Min: 3.1 V
Pd - Power Dissipation: 60 mW
Maximum Input Frequency: 30 MHz
Operating Supply Current: 12 mA
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 10 C
