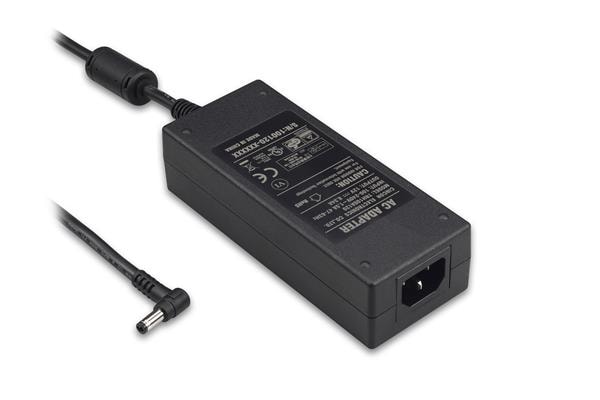

Cincon TRH100A120-36E12-Level-VI Desktop AC Adapters Switching Adapter with PFC, Level VI, Desktop, 100 Watt, 90-264VAC Input, 12VDC Output, 3.5x1.35x9mm, Right Angle, 1220mm Cable Length with Ferrite Core

Width: 58 mm

Height: 37 mm

Length: 142 mm

Region: Universal

Industry: Industrial

Approvals: CE, cUL, EN60950-1, IEC60950-1, UL60950-1

Compliance: PSE

Efficiency: Level VI

Output Power: 100 W

Input Voltage: 90 VAC to 264 VAC

Connector Type: Barrel Connector

Cooling Method: Convection

Mounting Style: Desktop

Load Regulation: Regulated

Mechanical Style: External

Center Pin Length: 9 mm

Isolation Voltage: 4.24 kVDC

Number of Outputs: 1 Output

DC Output Connector: 1.35 mm Barrel Plug, Right Angle (1.35x3.5)

Input Voltage - Max: 264 VAC

Input Voltage - Min: 90 VAC

Connector A Polarity: Center Positive

DC Output Cord Length: 1.2 m

Output Current-Channel 1: 8.34 A

Output Voltage-Channel 1: 12 VDC

AC Plug included/required: Required

Operating Temperature Range: - 30 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
