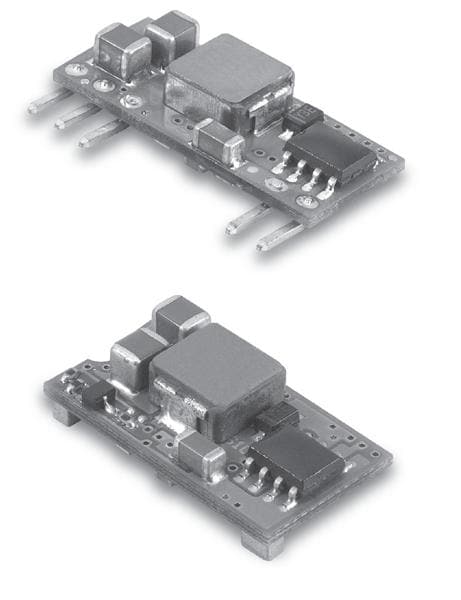

Cincon SIP05-12S05A Non-Isolated / PoL POL Converter, 5A, SIP Package, Non-Isolation, 8.3 14VDC Input Range, 0.75-5VDC Output

Width: 10.16 mm (0.4 in)

Height: 5.6 mm (0.22 in)

Length: 23 mm (0.906 in)

Industry: Industrial

Unit Weight: 2.300 g

Output Power: 25 W

Mounting Style: Through Hole

Mechanical Style: Non-Isolated / POL

Number of Outputs: 1 Output

Input Voltage - Max: 14 V

Input Voltage - Min: 8.3 V

Input Voltage, Nominal: 12 V

Output Current-Channel 1: 5 A

Output Voltage-Channel 1: 750 mV to 5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
