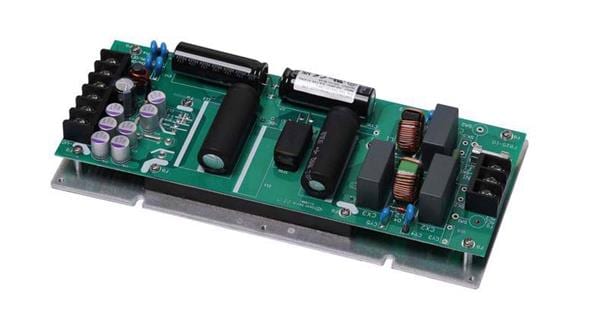

Cincon PDF700S280-CMFC AC-DC Power Supply with PFC 700W 90-264Vin 28Vout 25A

Width: 110 mm

Height: 40.3 mm

Length: 240 mm

Industry: Industrial

Approvals: IEC/EN/UL 62368-1 Ed 3.0

Efficiency: 90.5 %

Output Power: 700 W

Input Voltage: 100 VAC to 240 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 440 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 25 A

Output Voltage-Channel 1: 28 VDC

Maximum Operating Temperature: + 95 C

Minimum Operating Temperature: - 40 C
