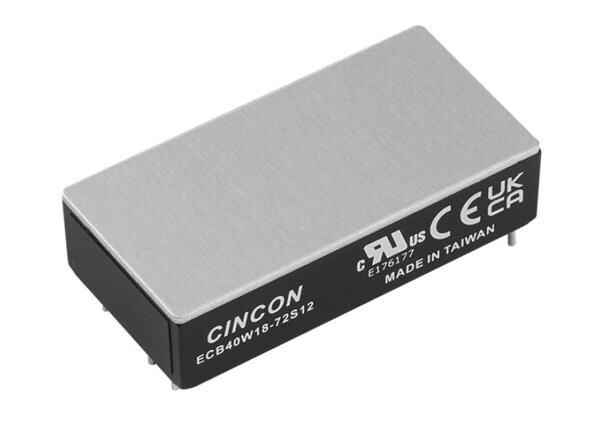

Cincon ECB40W18-72S05-B Isolated 40W 8.5-160Vin 5Vout 8A Bus

Width: 25.4 mm (1 in)

Height: 12.7 mm (0.5 in)

Length: 50.8 mm (2 in)

Industry: Industrial

Dimensions: 50.8 mm x 25.4 mm x 12.7 mm

Output Power: 40 W

Input Voltage: 8.5 VDC to 160 VDC

Mounting Style: Through Hole

Isolation Voltage: 3 kV, 4.2 kV

Number of Outputs: 1 Output

Input Voltage - Max: 160 V

Input Voltage - Min: 8.5 V

Input Voltage, Nominal: 72 V

Output Current-Channel 1: 8 A

Output Voltage-Channel 1: 5 V

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
