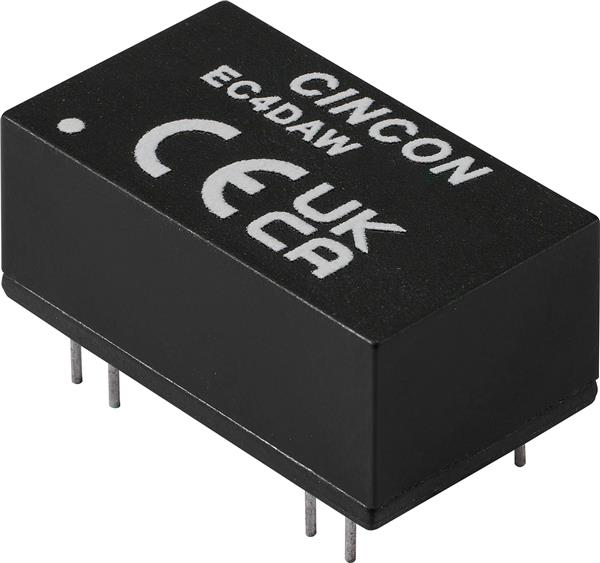

Cincon EC4DAW-48D15N Isolated 6W 18-74Vin +/-15Vout 200mA

Width: 13.7 mm (0.539 in)

Height: 10 mm (0.394 in)

Length: 24.2 mm (0.953 in)

Industry: Industrial

Dimensions: 24.2 mm x 13.7 mm x 10 mm

Output Power: 6 W

Input Voltage: 18 VDC to 74 VDC

Mounting Style: Through Hole

Isolation Voltage: 3 kV

Number of Outputs: 2 Output

Input Voltage - Max: 74 VDC

Input Voltage - Min: 18 VDC

Input Voltage, Nominal: 48 VDC

Output Current-Channel 1: 200 mA

Output Current-Channel 2: 200 mA

Output Voltage-Channel 1: 15 V

Output Voltage-Channel 2: - 15 VDC

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
