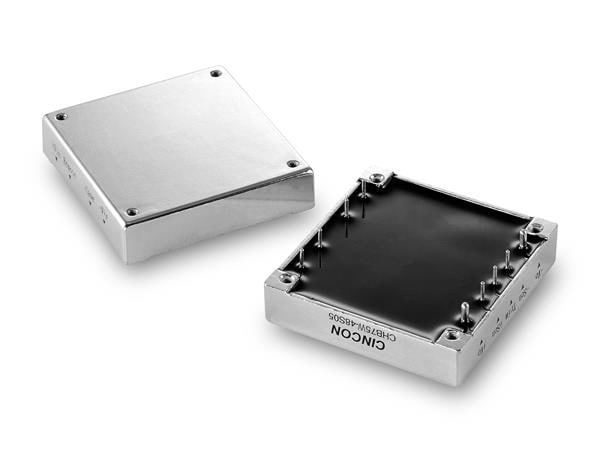

Cincon CHB75W-24S12N Isolated DC-DC Converter, Half Brick, 49.5 to 75 Watt, 4:1 Input Range, Single Output, 9-36VDC Input, 12VDC Output, Negative Logic

Width: 57.9 mm (2.28 in)

Height: 12.7 mm (0.5 in)

Length: 61 mm (2.402 in)

Industry: Industrial

Efficiency: 83 %

Unit Weight: 94 g

Output Power: 75 W

Input Voltage: 9 V to 36 V

Cooling Method: Convection

Mounting Style: Through Hole

Mechanical Style: Isolated

Isolation Voltage: 1.5 kV

Number of Outputs: 1 Output

Input Voltage - Max: 36 V

Input Voltage - Min: 9 V

Input Voltage, Nominal: 24 V

Output Current-Channel 1: 6.25 A

Output Voltage-Channel 1: 12 V

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
