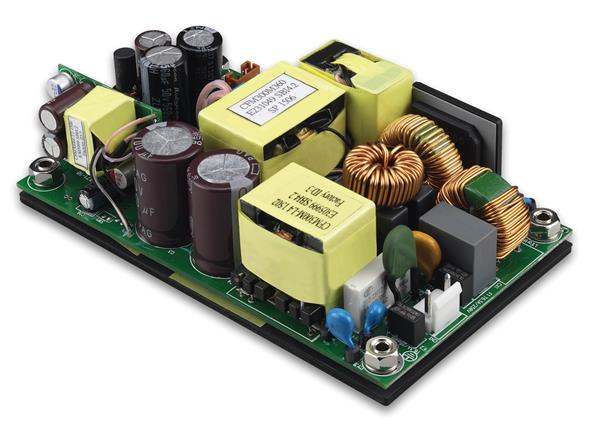

Cincon CFM300M480 AC-DC Converter AC-DC Power Supply with PFC, Medical, 300 Watt, Non-Covered, 48VDC Output, 6.25A, 150mV

Width: 76.2 mm

Height: 35.12 mm

Length: 127 mm

Industry: Medical

Efficiency: 94 %

Output Power: 300 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4000 Vrms

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 6.25 A

Output Voltage-Channel 1: 48 VDC

Operating Temperature Range: - 40 C to + 80 C

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C
