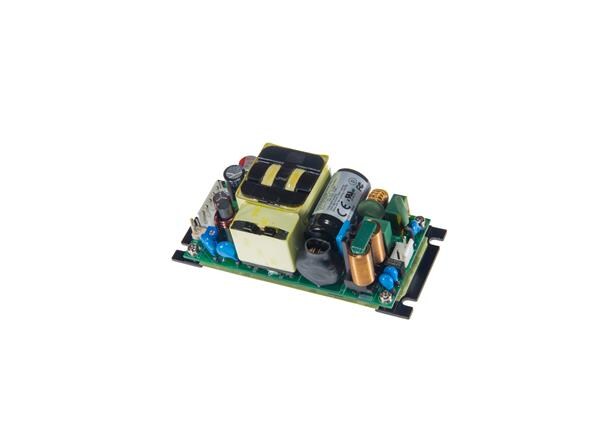

Cincon CFM260S240B Switching Power Supply 260W 85-264Vin 24Vout 7.92 Base

Width: 64 mm (2.52 in)

Height: 40.5 mm (1.594 in)

Length: 116.8 mm (4.598 in)

Industry: Industrial

Dimensions: 116.8 mm x 64 mm x 40.5 mm

Efficiency: 93 %

Output Power: 260 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Panel

Input Frequency: 47 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 10.83 A

Output Current-Channel 3: 10.83 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 30 C
