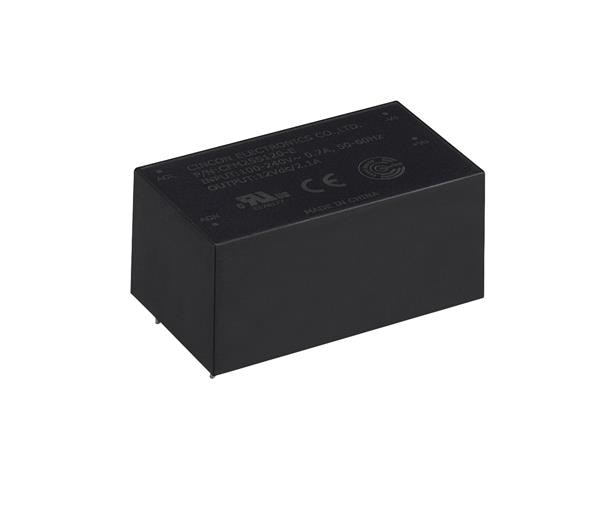

Cincon CFM25S360-EPL AC-DC Converter AC-DC Power Supply, Open Frame, 25 Watt, Single Output, 36VDC Output, 0.7A, 87% Efficiency, Encapsulated, Peak Load

Width: 30.3 mm (1.193 in)

Height: 24.8 mm (0.976 in)

Length: 53.1 mm (2.091 in)

Industry: Industrial

Efficiency: 87 %

Output Power: 25 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: PCB

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3000 Vrms

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 700 mA

Output Voltage-Channel 1: 36 VDC

Operating Temperature Range: - 30 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
