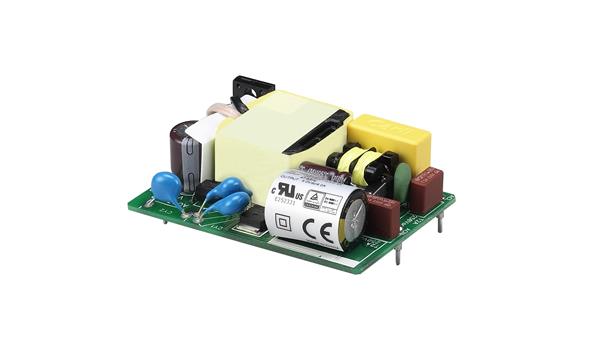

Cincon CFM21M150 Switching Supplies AC-DC Module, 20 Watt, Single Output, 90-264VAC Input, 15VDC Output, 1.4A, 85% Efficiency

Width: 40.6 mm (1.598 in)

Height: 20.4 mm (0.803 in)

Length: 60.5 mm (2.382 in)

Industry: Industrial

Efficiency: 85 %

Unit Weight: 55 g

Output Power: 21 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Through Hole

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 1.4 A

Output Voltage-Channel 1: 15 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 25 C
