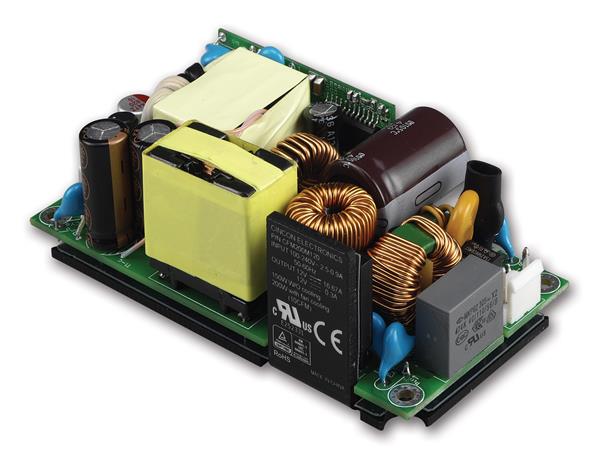

Cincon CFM200M240 AC-DC Converter AC-DC Power Supply with PFC, Medical, 200 Watt, 24VDC Output, 8.33A, 93.5% Efficiency, 240mVp-p Ripple & Noise

Width: 50.8 mm (2 in)

Height: 35 mm (1.378 in)

Length: 101.6 mm (4 in)

Industry: Medical

Efficiency: 93.5 %

Unit Weight: 253 g

Output Power: 200 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4000 Vrms

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 8.33 A

Output Voltage-Channel 1: 24 VDC

Operating Temperature Range: - 20 C to + 60 C

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 20 C
