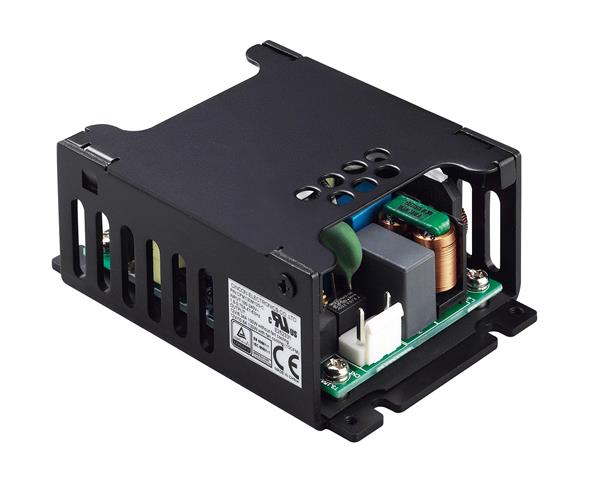

Cincon CFM130M360-C AC-DC Converter 130W Med w/PFC 36V 2.8A Cover

Width: 64 mm (2.52 in)

Height: 34.5 mm (1.358 in)

Length: 91.4 mm (3.598 in)

Industry: Medical

Approvals: Class I, Class II, EN60601-1, IEC60601-1, UL ANSI/AAMI ES60601-1

Compliance: Class I, Class II, EN60601-1, IEC60601-1, UL ANSI/AAMI ES60601-1

Efficiency: 94 %

Unit Weight: 218 g

Output Power: 130 W

Input Voltage: 80 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Power - Convection: 100 W

Power - Forced Air: 130 W

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 3.6 A

Output Voltage-Channel 1: 36 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
