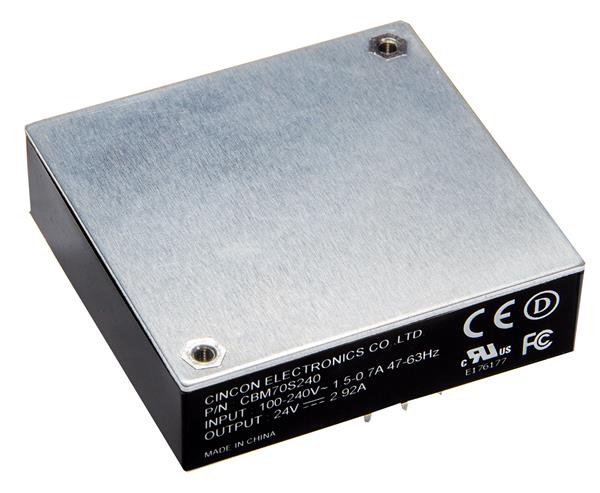

Cincon CBM70S240 Switching Power Supplies 70W 90-264VACin 24VDCout 2.92A

Width: 57.9 mm (2.28 in)

Height: 17 mm (0.669 in)

Length: 61 mm (2.402 in)

Industry: Industrial

Dimensions: 61 mm x 57.9 mm x 17 mm

Efficiency: 88.5 %

Output Power: 70 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Through Hole

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 2.92 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
