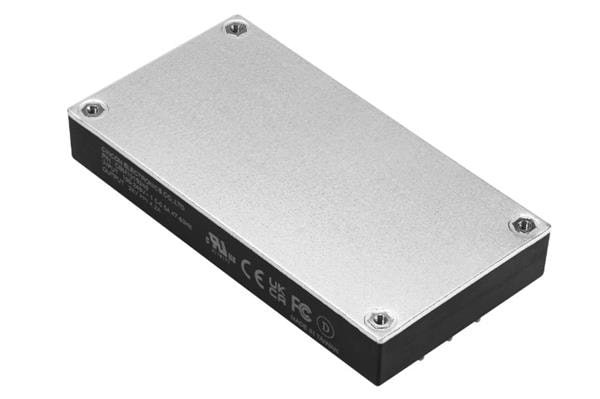

Cincon CBM101S240 Power Supply with PFC 100W PFC 24V 4.2A

Width: 61 mm (2.402 in)

Height: 17 mm (0.669 in)

Length: 116.8 mm (4.598 in)

Industry: Industrial

Approvals: CISPR/FCC Class B, EN55032, IEC/EN/UL 62368-1

Efficiency: 94.5 %

Output Power: 100 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Through Hole

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 4.2 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
