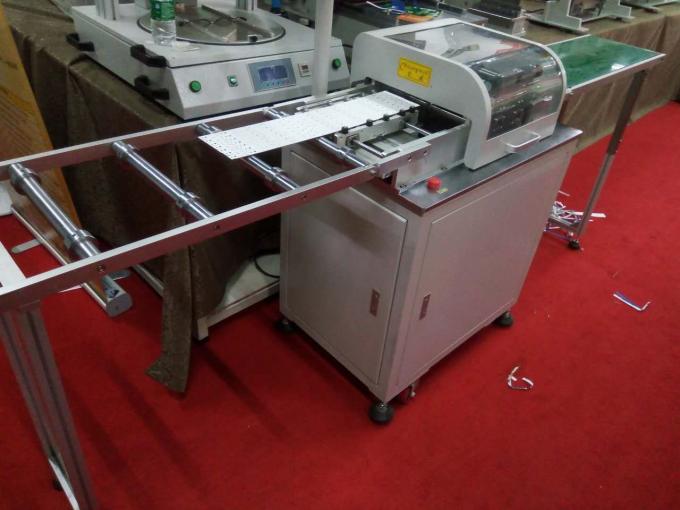

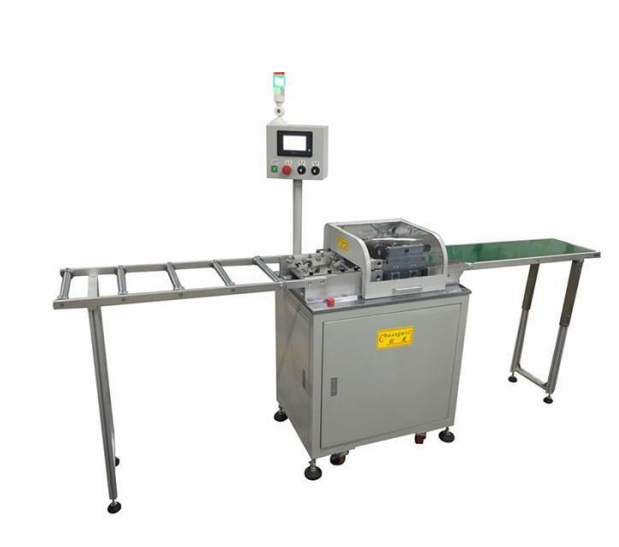

Chuang Wei CWVC-5 Motorized PCB Depanelizer

Max cutting length: No limit
Min cutting length: 100mm
Max cutting width: 160mm
Custom cutting width: 300mm
Min PCB width: 8mm
PCB thickness: 0.8-3.5mm
Feeding speed: 0-500mm/s
Working tem.: 10-35℃
Blade material(auto-lock function): high precision steel
Storge tem.: -20-50℃
Voltage: 110-220V
Dimension: 2160*570*1050mm
Packaging weight: 424kgs

Multi - blades PCB Separator CWVC-5 Cutting 10 PCS at One Time​ ​:

1, 10 pairs of blades is available

2, Configuration of the blades is adjusted toindividual PCB

3, Sensors are used to monitor the separating process

4,The PCBs are placed either by hand or they feed automatically by a loading station.Easy operating

5,Could be adjusted according to PCB sizes and customers' requirements

6,Could be customized made as customers' request
