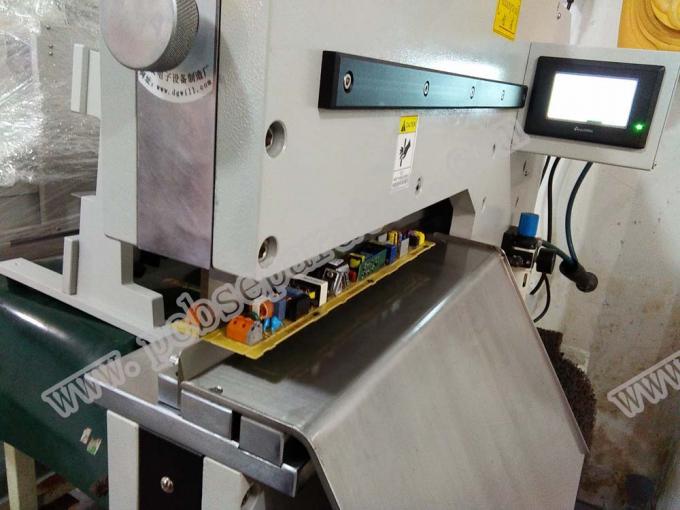

Chuang Wei CWVC-450J Pneumatic PCB Depanelizer

Max Cutting Length: 450mm
PCB Material: FR1, FR4, CEM1, CEM3, MCPCB
Display: PLC
PCB Thickness: 0.3-3.5mm
Blade Material :Japan High Speed Steel
Applications: Mobile/Computer/LED boards etc

Features:

Wedge-shaped knives shear the entire groove without bending or tension. Independent lab tests show less than 200 microstrains of stress measuring compression and tension.

Separates boards up to 450mm x 3.5mm thick.

Separating metallized boards or FR4 boards of any length.

Minimum board thickness of 0.3mm

Shears boards safely with parts as close as 0.5mm to the score line, including ceramic capacitors

Operator foolproof! Panels cannot be inserted into the knives except on the score line

Pneumatically driven

Handles high components up to 1"

Bow waves that can occur with round knives are avoided

Easy adjusting of distance between knives

Edge distance guide for separating scored boards
