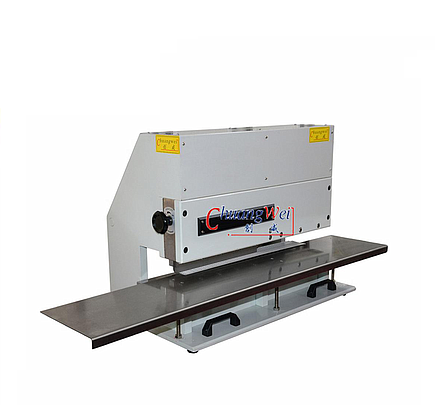

Chuang Wei CWVC-3 Pneumatic PCB Depanelizer

Max Cutting Length: No Limite
PCB Material: FR1,FR4, CEM1, CEM3, MCPCB
Application Industry: All electronic industries
PCB Thickness: 0.3-3.5mm
Platform Length :1.2M, other length is available
Driven Mode: Air

V-CUT PCB singulation machine features:

1.The machine was designed to singulate pre-scored PCB carefully, without bending and tension stress.

2.Even sensitive SMD-Components like ceramic capacitors, will not be damaged by the singulating process, or thin board even to 0.3mm can be worked safely.

3.Singulating process without vibrations.

4.PCB singulating control method is by pneumatic-driven and electromagnetic valve.

5.PCB control operation is that operator stamps the foot pedal to singulate PCB.

6.Highest components near the v groove of PCB can be up to 50mm.

7.Gap for insertion of PCB can be easy to adjust.
