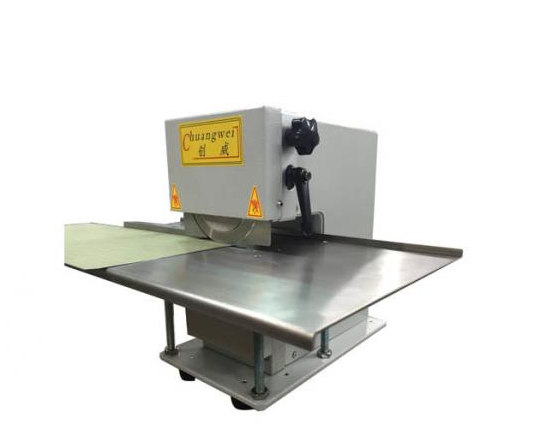

Chuang Wei CWVC-1SJ Motorized PCB Depanelizer

PCB Cutting Length (mm): no limit
Cutting Speed (mm/s): 0~400
Cutting Thickness (mm): 1.0~3.5
Power Supply :110/220 V
Size (mm): 420*280*400
Weight (Kg): 25

PCB Depaneling Cutter Tooling with High Speed Steel Simple CWVC-1SJ 110/220V 60W​ Specification

●Model CWVC-1SJ

●Max. PCB cutting length unlimited

●PCB cutting thickness 0.8-3.0mm

●Blade amount up and down 2 circular blades

●PCB cutting mode down circular blade with motor-driven

●PCB cutting speed 0~400mm/s

●Voltage and Power 110/220V 60W

●Cutting machine size :500 * 435 * 345

●Cutting machine weight 20Kg

●Staff allocated one person hold PCB with both hands and feed between the circular blades for cutting , fix position on pre-scored V groove

●workbench optional ( can make different length according to your board )

Chuangwei motor-driven V-CUT PCB Depaneling machine

1 . Max. PCB cutting length is unlimited

2 . The price is very economical

3 . Safety use and easy operation

4 . Blade can be re-grinded to use

Feature:

●apply to any V-Cut pcb panel

●Optional separating speed , can be adjusted easily.

●The Positioning board can Calibration location before and after to suit for

different V-Cut clearance panel .

●Can be equipped with long platform,exchange platform simply and easily .

●The inner cutting stress lower than the industrial standard 500μ strain,avoid tin crack ,deformation etc phenomenon .

●The upper circular blade can be vertically ajusted clearance .

●Blades can be reuse many times through regrind .

Chuangwei motor-driven V-CUT PCB cutting machine features:

1 . Guide can be adjusted vertically to suit different PCB thickness .

2 . Clearance between the circular blades can be precisely adjusted with the knob .

3 . Upper and lower circular blades can be re-used after regrinding .

4 . Shape and sizes of the circular blades can be made according to customer's specifications .
