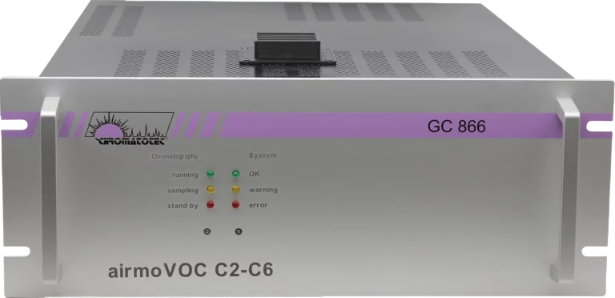

airmoVOC XPERT C2-C6
Light VOC Analysis: C2–C6 (Alkanes, Halogenated Compounds, Light Terpenes)
Detection Limit
10 ppt for Butane
15 ppt for 1.3-Butadiene
Detection Range: 0.5 to 100 ppb / amplification3 in standard
Relative Standard Deviation
< 0.3 % over 48h (RT)
< 2 % over 48h (Conc.)
Results
Data storage (SSD)
4–20 mA current output (option)
MODBUS / JBUS or MGS1 communication protocol (option)
Cycle Time: 30 min in standard (60 min in option)
Gas Supply:
H2 (FID and carrier gas): 30 mL/min (inlet 2 bars; 1/16’’ Swagelok)
Air (FID): 180 mL/min (inlet 3 bars; 1/8’’ Swagelok)
Sample inlet (vacuum pump): 1/4’’ Swagelok
Pneumatic valve: 90 mL / commutation
Cleaner: 10 mL/min (airmoVOC C2–C6 Xpert) for carrier gas
Sample Volume: 20 to 240 mL (programmable) (Sampling time up to 40 minutes)
Sampling Inlet:
Sample by-pass: 20 mL/min
MFC 0–200 mL/min (airmoVOC C2–C6 Xpert)
Sample dryer x2 (airmoVOC C2–C6 Xpert)
Oven Column: High temperature (airmoVOC C2–C6 Xpert)
Power Supply
Main: 230 V / 115 V or 50 Hz / 60 Hz
Battery: 24 V (option)
Electrical Consumption
Mean: 150 VA, Peak: 360 VA
Dimensions and Weight
Rack: 19’’ (4U)
Height: 180 mm
Width: 482 mm
