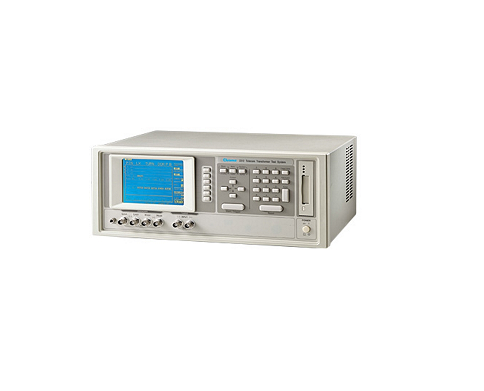

Chroma 3250 Transformer Test System / Component Analyzer
ManufacturerCHROMA(View more products from this manufacturer)
Model3250
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
- Test frequency: 20Hz~200kHz/1MHz, 0.02% accuracy
- Basic accuracy: 0.1%
- Different output impedance modes, measurement results are compatible with other well-known LCR meters
- Enhanced Turn Ratio measurement accuracy for low permeability core
- Fast Inductance/ Turn Ratio measurement speed up to 80 meas./sec
- Fast DCR measurement speed up to 50 meas./sec
- Graphical and tabular display of swept frequency, voltage current and bias current measurements (3252/3302)
- Build-in 8mA bias for RJ45 transmission transformer saturation condition (option)
- Leakage inductance 100 bin sorting and balance of leakage inductance for TV inverter transformer
- ALC (Auto Level Compensation) function for MLCC measurement (3252/3302)
- Test fixture residual capacitance compensation for transformer inductance measurement
- 1320 Bias Current Source directly control capability (3252/3302)
- 320x240 dot-matrix LCD display
- Support versatile standard and custom-design test jigs
- Four-terminal test for accurate, stable DCR, inductance and turn ratio measurements
- Built-in comparator; 10 bin sorting with counter capability (3252/3302)
- Lk standard value with Lx measure value
- 4M SRAM memory card, for setup back-up between units
- Standard RS-232, Handler, and Printer Interface, option GPIB Interface for LCR function only
- 15 internal instrument setups for store/recall capability
