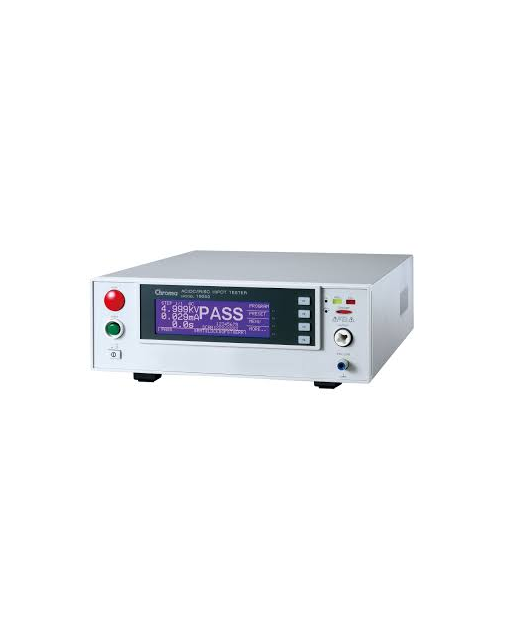

CHROMA 19052 Hipot Tester

Functions: AC, DC, IR

AC Withstanding Voltage

Output Voltage Range: 0.05 ~ 5kV

Load Regulation: ≦(1% + 5V)

Output Voltage Resolution: 2V

Output Voltage Accuracy: ±(1% of reading + 5 counts)

DC Withstanding Voltage

Output Voltage Range: 0.05 ~ 6kV

Output Voltage Resolution: 2V

Output Voltage Accuracy: ±(1% of reading + 5 counts)

Insulation Resistance (IR)

Output Voltage: 0.05 ~ 1kV

Output Resolution: 2V

Output Voltage Accuracy: ±(1% of reading + 5 counts)

IR Range: 1MΩ ~ 10GΩ

Interface: RS232 (standard), GPIB (optional)

Power Supply: 100V / 120V / 220V / 240V (AC ±10%), 50/60Hz

Dimensions: 320 x 105 x 400 mm

Weight: 15.4 kg
