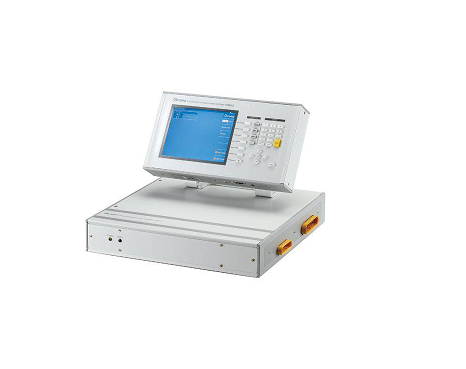

Chroma 13350 Automatic Transformer Tester

• est frequency 20Hz ~ 200kHz
• Turn Ratio, Phase, L, Q, Lk, ACR, DCR, Cp,Pin short, Balance
• Basic accuracy : 0.1%
• Three different output impedance modes
• Scan unit/box including :
  - 20ch scan test unit
  - 80ch* scan box
  - C.T.* test fixture
• Compensation for individual channel
• *Combine measurement unit with scanbox to reduce measurement errors
• *USB storage interface
• *10-100 LAN/ USB-H interface (option)
• *Built-in programmable 100mA bias current (RJ-45)
• *Test frequency, voltage and speed set separately
• *Fail Lock function
• *Auto Test function
• *Equipped with external standard test on 20ch scan test unit
• *Reduce the short-circuit loss in secondary side for leakage (Lk) test (A133502 20ch scan unit)
• *Short-circuit pin selectable for every test item
• *Multiple language: English & Simplified Chinese
• *RS232 interface compatible SCPI commands
