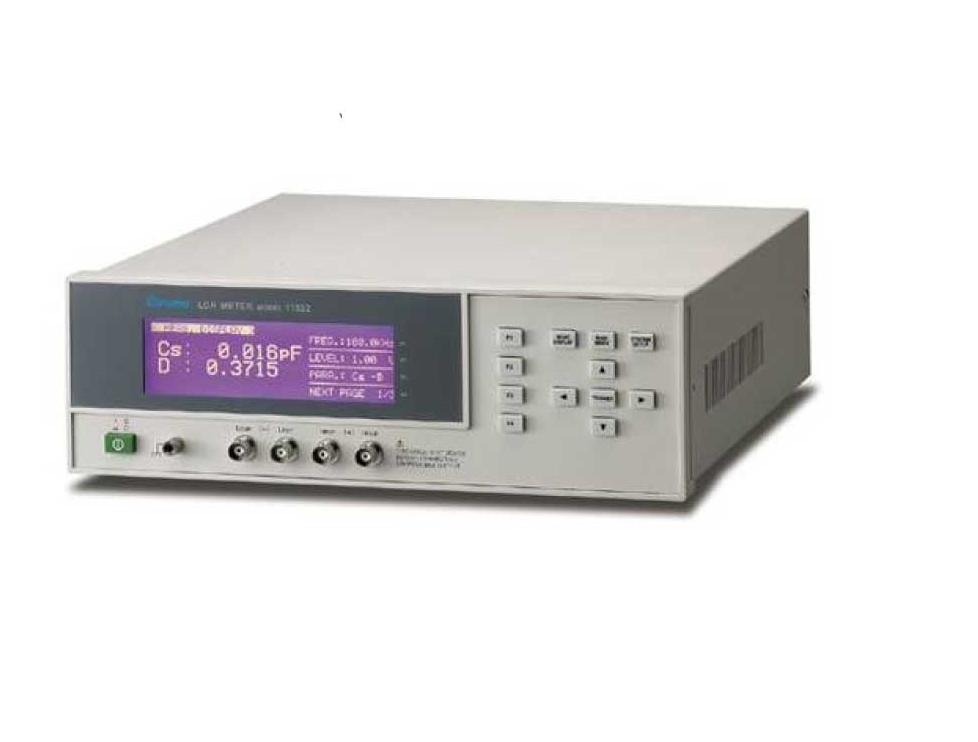

Chroma 11022 LCR Meter
ManufacturerCHROMA(View more products from this manufacturer)
Model11022
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
- 0.1% basic accuracy
- 0Hz, 60Hz, 100Hz, 120Hz, 1kHz, 10kHz, 20kHz, 40kHz, 50kHz, 100kHz test frequencies
- 21ms measurement time (≧100Hz)
- Agilent 4263B LCR Meter commands compatible
- 4 different output resistance modes selectable for non-linear inductor and capacitor measuring
- High resolution in low impedance(0.01mΩ) and high accuracy 0.3% till 100mΩ range
- Adjustable DC bias current up to 200mA (constant 25Ω) (11025)
- 1320 Bias Current Source directly control capability
- 0.01mΩ ~ 99.99MΩ wide measurement range (4 1/2 digits)
- Dual frequency function (11022 option) for automatic production
- BIAS comparator function
- Comparator function and 8/99 bin-sorting function
- Pass/fail judge result for automatic production
- Handler interface trigger edge (rising/falling) programmable
- Test signal level monitor function
- Standard GPIB (IEEE-488) and handler interface, option RS 232 I/F
- Open/short zeroing, load correction
- LabView® Driver
