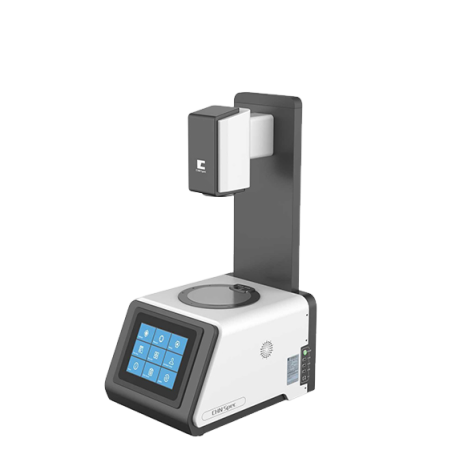

CHN SPEC TH-200 Laser Transmittance Tester (0-100%)

Wavelength: 850nm, 905nm, 915nm, 940nm, 980nm, any wavelength can be selected

Transmittance range: 0-100%

Single measurement time: ＜0.9 seconds

Measurement repeatability: 0.5%

Measurement accuracy: 0.01%

Maximum measurement size: 150*150mm

Maximum detection distance: 250mm

Calibration method: Automatic calibration

Measurable parameters: Multi-point transmittance, maximum value, minimum value, average value, transmittance change curve over time, welding quality inspection

Measurement method: Vertical irradiation, multi-point comprehensive simultaneous detection

Computer: Built-in industrial tablet computer

Operating system: Win10

Optional accessories: Calibration certificate
