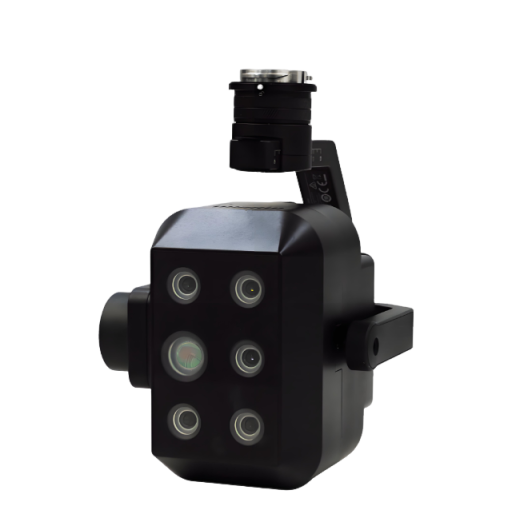

CHN SPEC FS-620 Multi-spectral Camera (4 channels multispectral + 1 RGB + 1 channel thermal infrared LWIR)

Assembly method: 4 channels multispectral + 1 RGB + 1 channel thermal infrared LWIR

Target size: Multispectral: 1/2"; RGB: 1/3"

Effective pixels: Multispectral: 1.3Mpx; RGB: 11.9Mpx; LWIR: 0.3Mpx

Shutter type: Multispectral: Global; RGB: Rolling

Quantization bit number: Multispectral: 12bit; RGB: 8bit

Field of view: Multispectral: 54.2°×44.5°; RGB: 49.1°×40.5°

Ground resolution: Multispectral: 9.6cm@H120m; RGB: 2.86cm@H120m

Coverage width: Multispectral: 123mx98m@H120m; RGB: 109mx88m@H120m

Spectral channel:

Multispectral: 555nm@27nm, 660nm@22nm, 720nm@10nm, 840nm@30nm

RGB, LWIR: 8μm–14μm

Optical window: Sapphire optical glass window

Host size: 182mmx169mmx129mm (including gimbal)

Host weight: ≤1000g (including gimbal)

Mounting interface: X-Port

Powered by: X-Port

Power consumption: <=43W

Image format:

Multispectral: 16-bit raw TIFF (including GPS)

RGB: 8-bit JPEG (including GPS)

LWIR: 16-bit TIFF (including GPS)

Storage media: Standard 512G solid state drive

Processing software: FigSpec UAV-MS, FigSpec Merge-MS, FigSpec Studio

Parameter setting: DJI Pilot

Shooting trigger: Timing trigger

Shooting frequency: Maximum support 10Hz

Operating temperature: -10°C~+50°C (Relative wind speed ≥1m/s)

Storage temperature: -30°C~+70°C

Ambient humidity: RH ≤85% (non-condensing)
