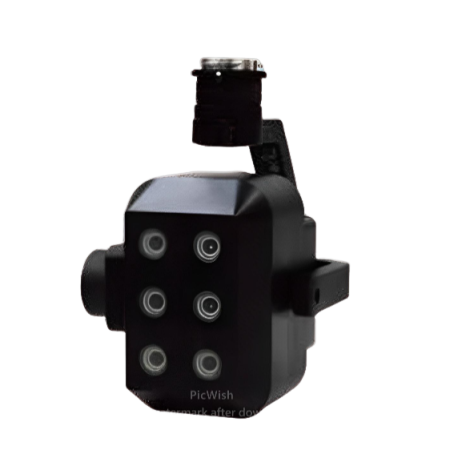

CHN SPEC FS-600 Multi-spectral Camera (6-channel multispectral)

Assembly method: 6-channel multispectral

Target size: 1/2"

Effective pixels: 1.3Mpx

Shutter type: Global

Quantization bit number: 12bit

Field of view: 54.2°×44.5°

Ground resolution: 9.6cm@H120m

Coverage width: 123m@H120m

Spectral channel: 450nm@30nm, 555nm@27nm, 660nm@22nm, 720nm@10nm, 750nm@10nm, 840nm@30nm

Optical window: Sapphire optical glass window

Host size: 182mmx169mmx129mm (including gimbal)

Host weight: ≤940g (including gimbal)

Mounting interface: X-Port

Powered by: X-Port

Power consumption: 43W

Image format: 16-bit raw TIFF (including GPS)

Storage media: Standard 512G solid state drive

Processing software: FigSpec UAV-MS, FigSpec Merge-MS, FigSpec Studio

Parameter setting: DJI Pilot

Shooting trigger: Timing trigger

Shooting frequency: Maximum support 10Hz

Operating temperature: -10°C~+50°C (Relative wind speed ≥1m/s)

Storage temperature: -30°C~+70°C

Ambient humidity: RH ≤85% (non-condensing)
