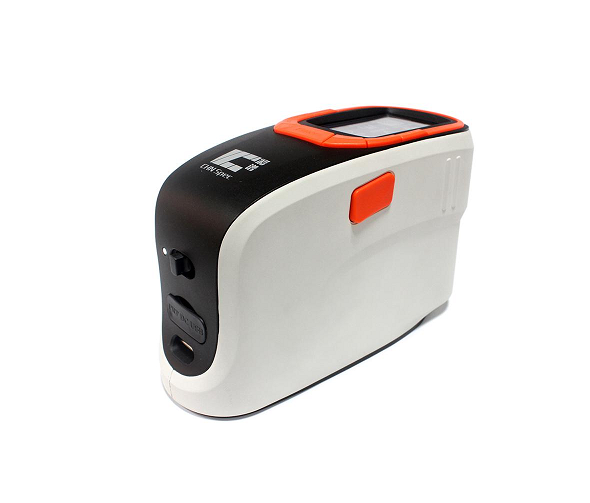

CHN SPEC CS-610A Spectrophotometer

Illumination: D/8 (diffused light, 8° reception, SCE/SCI)
Sensor: Photoelectric diode array
Integrating sphere diameter: 40mm
Wavelength range: 400nm – 700nm
Wavelength interval: 10nm
Half bandwidth: <=14nm
Range of reflectance 0-175%, resolution: 0.01%
Light source: Composite LEDs
Measuring time: About 1.5 seconds
Measuring caliber: 8mm
Repeatability: The standard deviation within ΔE*ab< 0.03, the standard deviation within 0.2%
Data storage: 100 x 200 (100 sets of standard samples, up to 200 measurement records under each standard sample)
Port: USB
Power source: Detachable lithium-ion battery pack; DC adapter
Display: 2.8-inch TFT color screen
Accessories: Black and white calibration box
Optional accessories: Mini-printer
