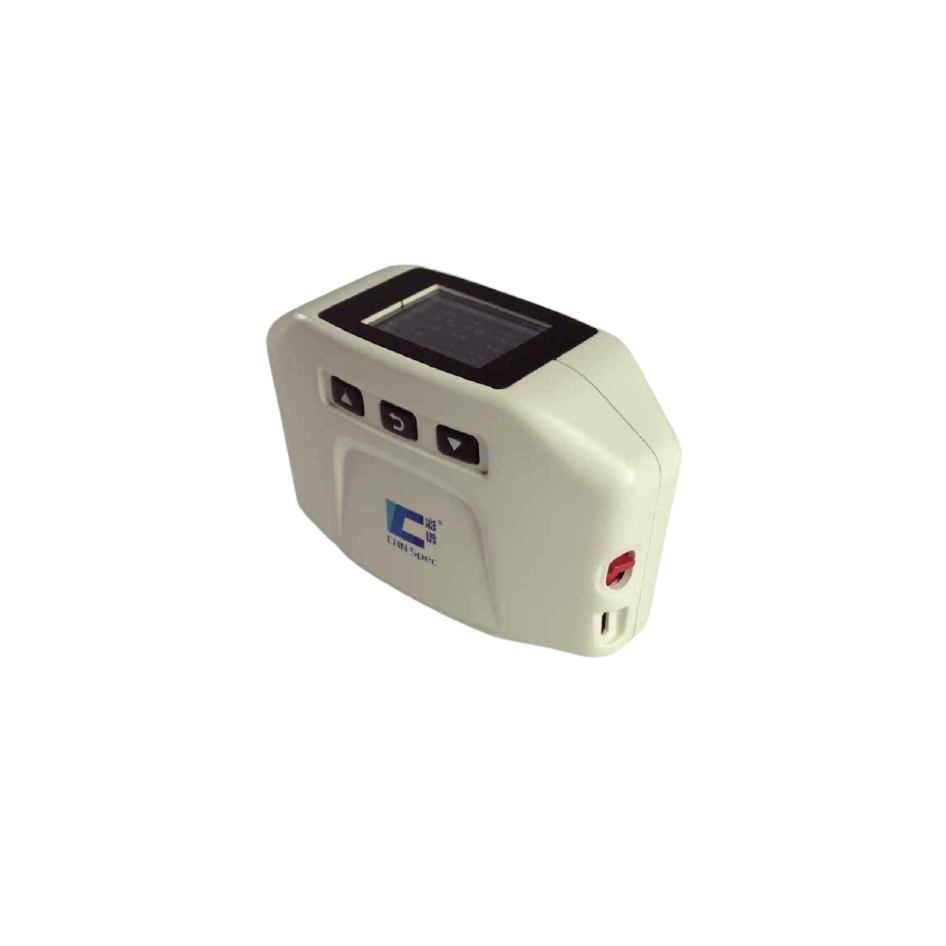

CHN SPEC CS-392 Three Angle Color Spectrophotometer

Illumination Angle: 45°

Measurement Angles:

Color measure angle 15°/45°/110°

Graininess Measure Angle: Integrating Sphere Diffused Illumination

Measurement Paremeter:

Colorimetric parameter: L*a*b,L*C*h,ΔE*; ΔECMC; ΔE DIN6175; ΔE2000

Effect parameter: Graininess level(G)

Wavelength Range: 400-700nm

Wavelength Pitch: 10nm

Reflectance Range: 0-500%

Resolution: 0.01%

Light Source: LED

Illuminants: A,C,D50,D65,F2,F7,F11,F12

Measurement Time: Less than 6s

Repeatability: dES0 .05Max.after white calibration (measured 30 x at 5-second intervals)

Inter-instrument Agreement: dES0 .5 Average measurement of BCRA II color tiles)

Viewing Angles: 2°and 10°

Measurement Area: Dia. 17mm

Light Source Lifetime: 10 years, 1 million times

Interface: USB

Instrument Size: 145*58*99mm

Instrument Weight: 476g

Power: 3.7V/3000mAh rechargeable lithium batter

Temperature: 0-40°C (32-104°F)

Storage Temperature: -20-50°C(-4-122°F)
