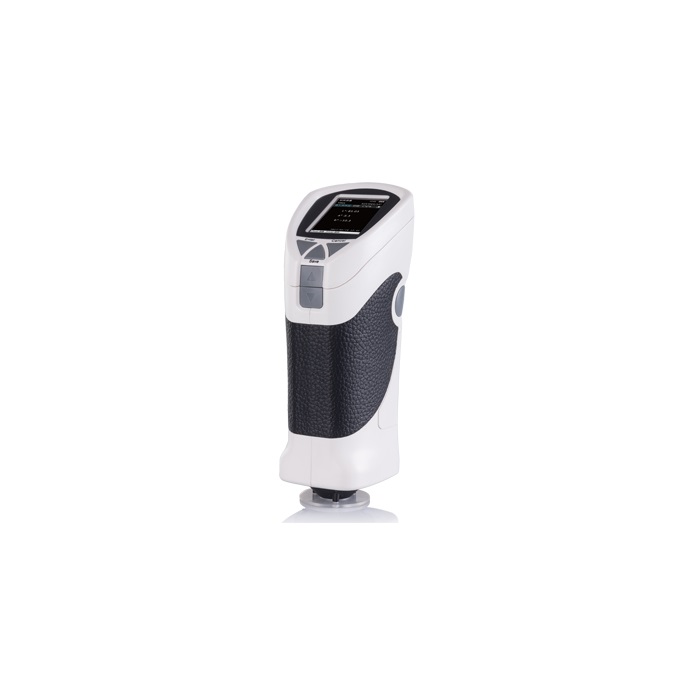

CHN SPEC CS-280 Spectro Colorimeter

Illumination: di/8(Diffused Illumination, 8 degree viewing)

(conform to CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standard）

Size of integrating sphere: Φ40mm, Avian diffused reflection surface coating

Illumination Light source: CLED

Sensor: array sensor

Wavelength: 400-700nm

Spectrum Resolution: 10nm

Measurement Time: 2s

Measurement Aperture: 11mm,optional 4mm,6mm,15mm

Repeatability: Standard Deviation ΔE*ab 0.08(when a white calibration plate is measured 30 x at 10-second intervals after calibration)

Observe Angles: 2° and 10°

Light Source: A,C,D50 and D65

Display: Chromaticity value（L*a*b，L*C*h）, delta E value, pass/fail, color tendency, average, generate test report

Color Difference Formula: ΔE*ab,ΔE*CH

Color Space: CIE-L*a*b,L*C*h

Data Storage: 20000 samples

Light Source Lifetime: 5 years, 1.5 million times

Other Function: without

Screen: Panchromatic True Color Screen

Language: Chinese and English

Interface: USB2.0

Operating Temperature: 5~45℃, relative humidity 80% or below( at 35°C ),no condensation

Storage temperature range: -25℃ to 55℃，relative humidity 80% or below(at 35°C ),no condensation

Power: Rechargeable Lithium Battery 8.4V/2000mAh, adaptor DC12V

Size: 77×86×210mm

Weight: About 550g

Color Matching System: Not matched

UV Light Source: without

Standard Accessories: adapter, operating manual, color management software, drive software, electronic manual, color management guide, USB cable, black/white calibration tube, protective cover, portable bag, electronic color charts

Optional: Micro Printer
