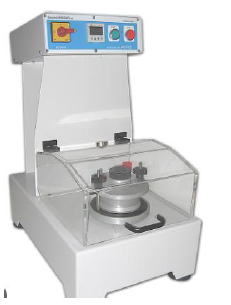

Supplied complete with steel balls of 1mm, 2mm, 3mm and 5mmdiameter andwhite fused alumina oxide. Note : This Model is not as per IS standard, hence it is not recommended for NABL Laboratory. Float Glass for calibration, Drying Oven and Weighing Balance available at extra cost.
Technical Specification
•Diameter of rotating disc : 580 mm
•Eccentricity of axis of rotation of the
disc: 22.5 mm
•Speed of rotation of disc : 300 ± 10rpm
•Max. no of test specimens tested at a
time: 1 number
•Inside diameter of specimen holding
ring: 83 mm
•Distance of centre of test area from
center of disc: 195 mm
•Electric Motor power : 1/4 HP Single‑phase, 230 Volts, 50 Hz, AC supply
•Digital counter : 4 digits pre‑set type electronic counter with memory back up and key
