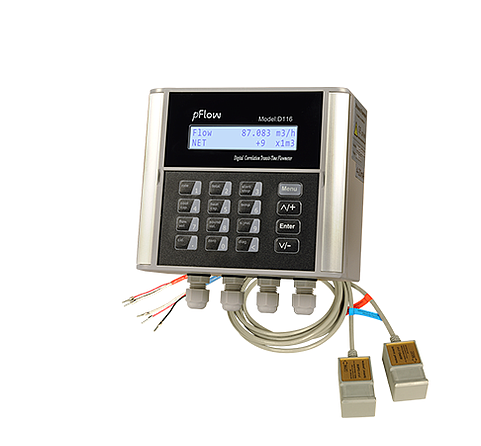

CHINA gfg ultrasonic flow meter

Accuracy: +1.0% of measured value Repeatability: +0.3% of reading

Fluids Measured: Water and liquids; Tolerant of liquids with small amounts of air bubbles or suspended solids

Flow Range: Bi-directional flow range of 0.03 ft/s to 16 ft/s (0.01 to 5 m/s) Pipe sizes from 1 to 48 inches (25 to 1200mm)

Pipe material: Carbon sheet; stainless sheet; PVC

Digital Communications: RS-485, Modbus RTU

Out puts: OTC pulse output :05000 Hz Analog output: 420mA, max load 7500

Temperature: Transmitter : 14°F~ 122°F(-10°C~50°C) Transducer : 32°F~ 176°F(0°C~80°C)

included for sensor 25mm-1200mm

Datashet
