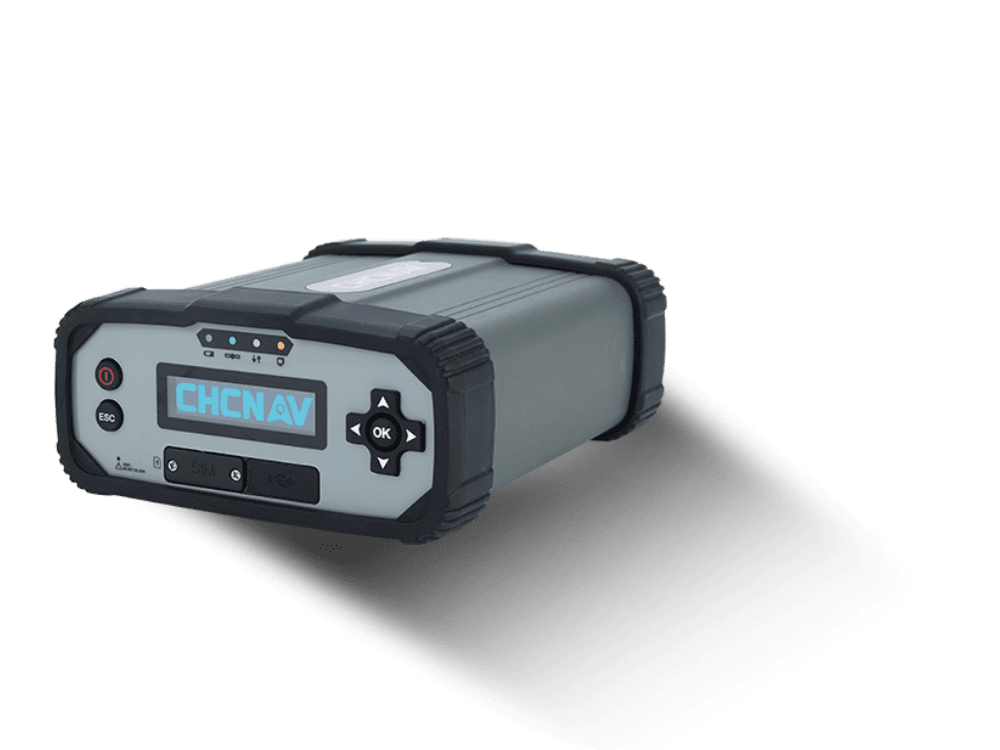

CHCNAV P5 Geodetic GNSS Reference Station (1408CH)

GNSS characteristics

Channels: 1408

BDS: B11, B2, B31, B1C, B2a, B2b

GPS: L1, L2

GLONASS: G1, G2

Galileo: E1, E5a, E5b, E6

QZSS: L1C/A, L1C, L2C, L5

SBAS: L1C/A

NavIC: L1C/A, L1C, L2C, L5

SBAS: L5

L-Band

GNSS accuracies

Real time kinematic (RTK):

Horizontal: 8 mm + 1 ppm RMS

Vertical: 15 mm + 1 ppm RMS

Initialization time: < 8 s

Initialization reliability: > 99.9%

Post-processing static

Horizontal: 2.5 mm + 0.5 ppm RMS

Vertical: 5 mm + 0.5 ppm RMS

Post-processing static (long observation)

Horizontal: 3 mm + 0.1 ppm RMS

Vertical: 3.5 mm + 0.4 ppm RMS

Hardware:

Size (L × W × H): 200 mm × 150 mm × 69 mm(7.9 in x 5.9 in x 2.7 in)

Weight: 2.15 kg (75.8 oz) with battery

Environment: Operating: -40°C to +65 °C; (-40°F to +149°F); Storage: -45°C to +80°C; (-49°F to +176°F)

Humidity: 100%

Ingress protection: IP67 waterproof and dustproof, protected from temporary immersion to depth of 1 m

Shock: IEC68-2-27

Electrical

Power consumption: 5 W (depending on user settings)

Internal battery capacity: 17,000 mAh, 7.4 V

Operating time on internal battery (3): Up to 20 h (depending receiver configuration)

External power: 9 V DC to 36 V DC

Certifications and Calibrations: FCC Part 15 (class B Device), FCC Part 22, 24, 90; CE Mark; Method 514.7, IGS

Communications and Data storage

Ports:

1 x 10-pin LEMO port (external power, RS-232)

1 x USB 2.0 port (data download, firmware update)

1 x LAN port

HTTP / HTTPs, TCP/IP, UDP, FTP, NTRIP Caster, NTRIP Server, NTRIP Client

– Simultaneously transmits multiple data stream

– Support proxy server and route table

1 x DB9 port

1 x GNSS antenna port

1 x SIM card slot

Protocols:

Correction formats: RTCM2.x, RTCM 3.x

Observables: HCN, HRC, RINEX2.x,

RINEX3.x

Position/Status I/O: NMEA 0183 output

Met sensor

Internal data logging and position: Output frequency up to 50 Hz (optional) Storage capacity 32 GB

Bluetooth : V 4.1

Wi-Fi: 802.11 b/g/n, access point mode

Network modem (Internal 4G modem):

Integrated 4G modem

LTE (FDD): B1, B2, B3, B4, B5, B7, B8, B20

DC-HSPA+/HSPA+/HSPA/UMTS: B1, B2, B5, B8

EDGE/GPRS/GSM

850/900/1800/1900 MHz
