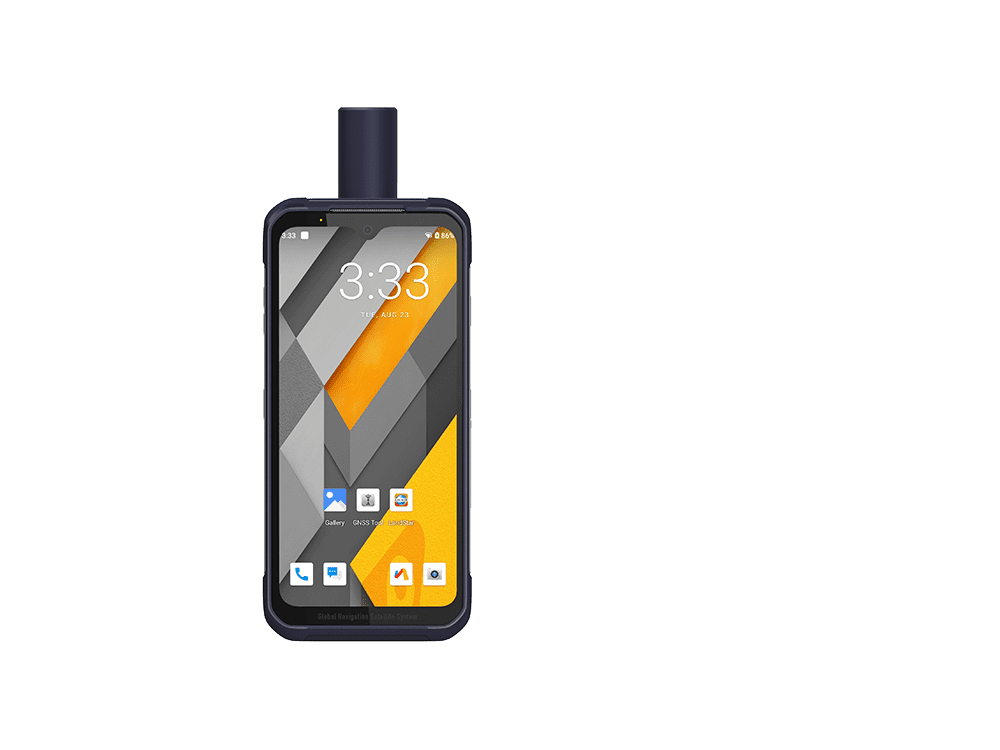

CHCNAV LT60H Rugged Gnss Rtk Smartphone (1408CH, Android 12.0, ROM: 64 GB)

System:

Operating system: Android 12.0 GMS certified

CPU: Advanced octa-core CPU 2.0 GHz

RAM: 4 GB

ROM: 64 GB

Extension: Micro SD card, up to 128 GB

GNSS Accuracies

Channel: 1408

Constellation:

BDS: B1I, B2I, B3I, B1C, B2a, B2b

GPS: L1C/A, L1C, L2P (Y), L2C, L5

GLONASS: L1, L2

Galileo: E1, E5a, E5b, E6

QZSS: L1, L2, L5, L6

SBAS: L1, L5

RTK: 2 cm HRMS

SBAS: < 1 m HRMS

Display

Size: 6.3” touch screen

Resolution: 2340 x 1080

Brightness: 550 cd/m2; glare resistant, excellent sunlight readable screen

Touch screen: Capacitive multi-touch, 5 points

Screen technology: IPS display panel; Corning® Gorilla®; Glass 3

Cameras

Front: 8 MP

Rear: 16 MP

Flash light: Integrated

Physical

Dust and water proof: IP67 (according to IEC 60529) for water and dust resistance, protected against temporary immersion at a depth of up to 1 m.

Shock: 1.5 m fall onto concrete

Humidity: 5% - 95% RH (without condensation)

Size (L x W x H): 212.4 mm x 81.5 mm x 32.8 mm(8.4 in x 3.2 in x 1.3 in)

Weight: 400 g (14.1 oz)

Environment: Operating: -20°C to +60°C; Storage: -40°C to +70°C

Battery

Li-ion battery capacity: Built-in non-removable battery 6,000 mAh

Voltage: 3.8 V

Battery life: 8 h

Charging time: 4.0 h Fast charging: QC 3.0

Internal sensors: NFC; G-Sensor; Light Sensor; E-Compass; Gyroscope

Accessories:

- Screen protector

- Packaging box

- Type-C USB cable

- Charger
