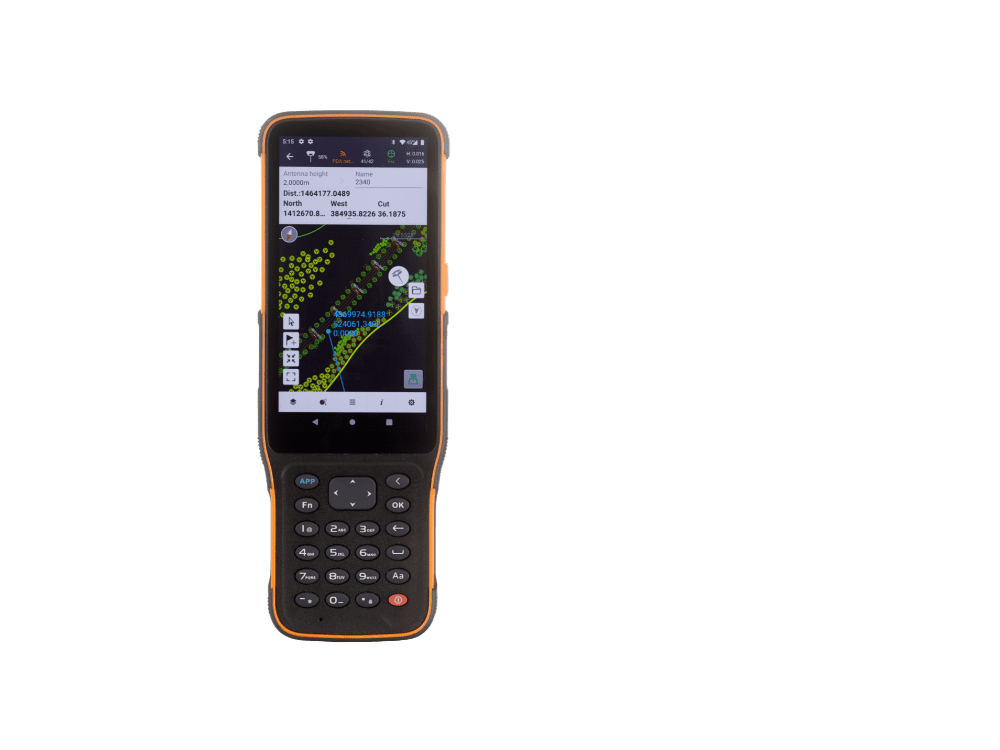

CHCNAV HCE600 Portable GNSS Device Data Collector (45CH, Android 10)

System:

Operating system: Android 10

CPU: Helio MTK 6762 octa-core 2.0 GHz

RAM: 3 GB SDRAM

Flash memory: 32 GB

Memory card: MicroSDHC up to 128 GB

GNSS Accuracies

Channel: 45

Constellation:GPS L1C/A, GLO L1, BDS B1,GLE E1

Autonomous: 2~5 m HRMS

Physical

Dust and water proof: IP67

Shock and vibration: 1.5 m (4 ft) fall on concrete MIL-STD 810H

Humidity: 5% - 95% RH (without condensation)

Size (L x W x H): 224 mm × 80 mm × 15.4 mm(8.8 in × 3.1 in × 0.6 in)

Weight: 345 g (12.2 oz) with battery

Environment: Operating: -30°C to +60°C; Storage: -40°C to +65°C

Display: 5.5" IPS LTPS LCD capacitive multi-touch; 1440 × 720 pixels HD+ 296 ppi; DragonTrail™ scratch resistant glass; Brightness 500 cd/m²

Keypad: Alphanumeric

Electrical

Li-ion battery capacity: 6240 mAh

Operating time: 14h

Charging time: 4.0 h typical

Standard Accessories: A/C charger; USB cable; Stylus; Handstrap; Range pole bracket
