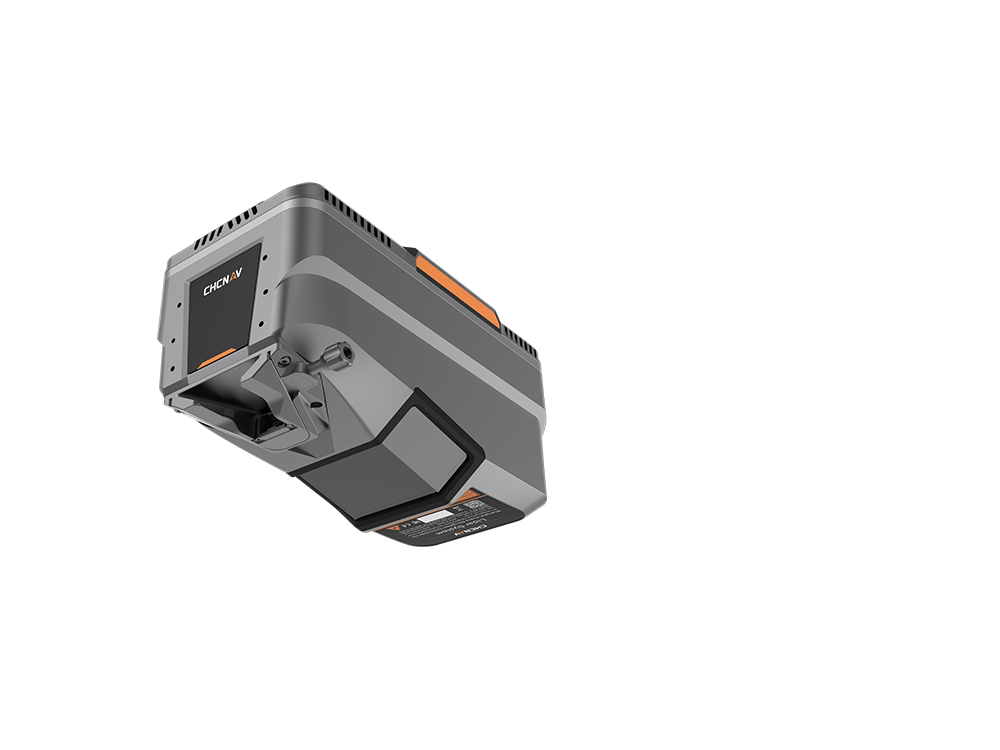

CHCNAV AA15 Premium Airborne LiDAR Solution (DC 24 V (15 ~ 27 V), 60W)

General system performance

Absolute Hz accuracy: 2 cm ~ 5 cm RMS

Absolute V accuracy: 2 cm ~ 5 cm RMS

Mounting: Quickly install & release design, easily switch between various UAV platforms, RPAS, small anned aircraft and helicopters

Weight of instrument: 2.5kg

Dimensions of instrument: 247 mm × 126 mm × 156 mm

Data storage: 512GB (Optional for 1 T)

Coping speed: 80 Mb/s

Imaging system: External camera C5/C30 (Optional for third-party oblique or orthho cameras)

Positioning and orientation system

GNSS system: Multiple GPS, GLONASS, Galileo BeiDou, SBAS and QZSS constellation, L-Band

IMU update rate: 600 Hz

Attitude accuracy after post-processing: 0.005° RMS pitch/roll ; 0.010° RMS heading

Position accuracy after post-processing: 0.010 m RMS horizontal; 0.020 m RMS vertical

Laser scanner

Laser product classification: Class 3R Laser Product according to IEC 60825-1:2014

Laser pulse repetition rate PRR: 100 kHz~2M Hz

Laser divergence angle: 0.032°

Minimum range: 5m

Accuracy: 15 mm (1σ,@ 150 m)

Precision: 5 mm (1σ,@ 150 m)

Multi-Period capability: Up to 7 zones

Field of view: 75°

Scanning mechanism: Rotating mirror

Max. measurement rate : 2,000,000 meas./sec.

Scan speed (selectable): 50 ~ 600 scans/sec

Imaging system

Resolution: 45 MP

Focal length: 21 mm/35 mm

Sensor size: 36 mm x 24 mm (8184 x 5460)

Pixel size: 4.4 μm

Min photoing interval: 1s

FOV: 81.2*59.5 / 53.4*37.8

Environmental

Operating temperature: -20°C to +50°C

Storage temperature: -20°C to +60°C

IP rating: IP64

Humidity (operating): 80%, non-condensing

Electrical

Input voltage: DC 24 V (15 ~ 27 V)

Power consumption: 60W
