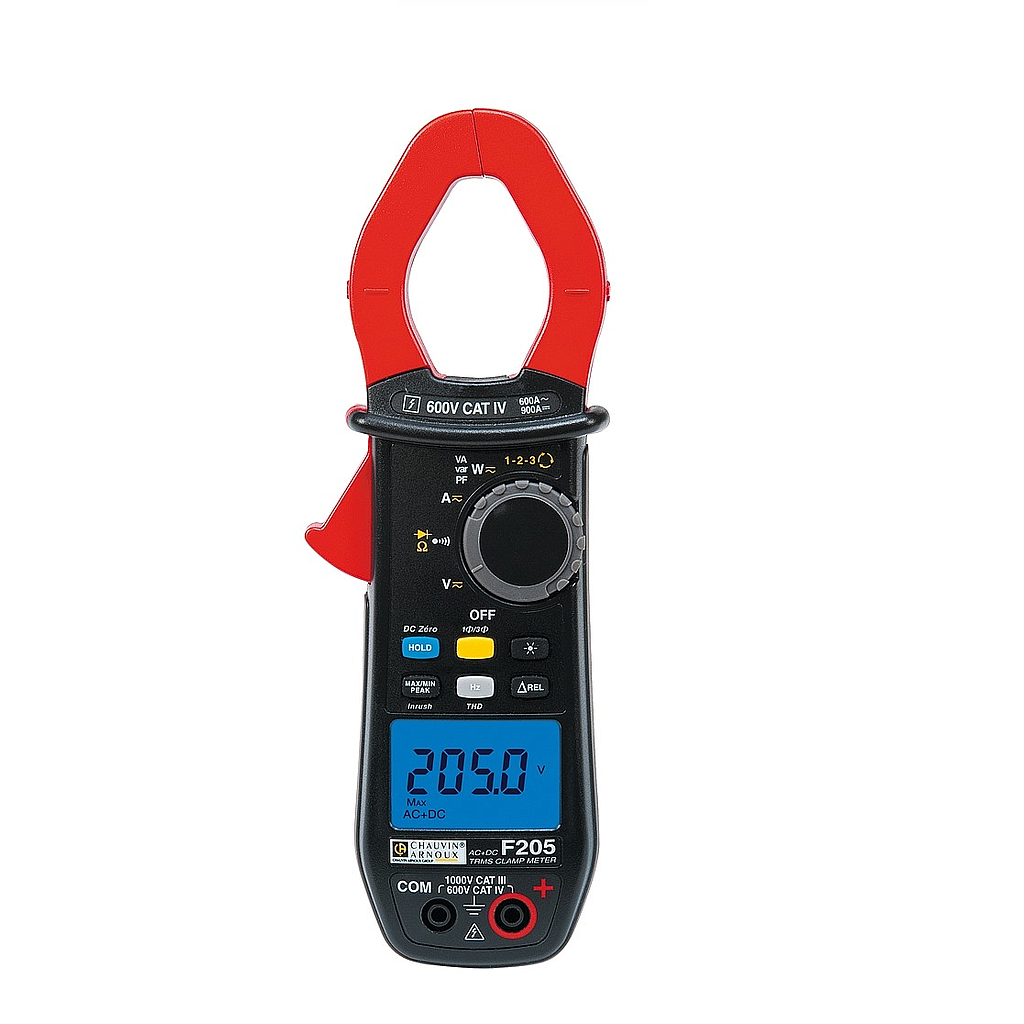

Chauvin Arnoux F205 AC/DC Clamps Power And Harmonic Meter (900A,True RMS)

Specifications
- Clamping diameter : Ø 34 mm
- Display: Backlit LCD
- Resolution: 6,000 counts
- Number of values displayed : 1
- Type of acquisition: TRMS [AC, AC+DC] /DC
- Aac+dc: 0.15 to 1,000V (1,400 V peak)
- Autorange function: yes
- Automatic AC/DC detection: yes
- Aac: 0.15 to 600 A (900 A peak)
- Adc: 0.15 to 900 A peak
- Best accuracy: 1 % R + 3 số
- Vac: 0.15 đến 1,000 V (đỉnh 1,400 V )
- Vdc: 0.15 đến 1,400 V
- Vac+dc: 0.15 to 1,000V (1,400 V peak)
- Best accuracy: 1% R + 3 cts
- Resistance: 60 kΩ
- Audible continuity: Adjustable from 1 Ω to 599 Ω
- Diode test (semi-conductor junction): yes
- Adapter: yes
- Single-phase and total three-phase power values: yes
- Active (W): yes
- Reactive (VAR): yes
- Apparent (VA): yes
- FP / DPF: yes/ no
- Harmonic analysis THDf/ THDf: yes/yes
- Frequency analysis: No
- Phase rotation (2-wire method): Yes
Functions
- Overcurrent measurement: yes
- Motor Inrush: yes
- Load evolution (TrueInrush): yes
- Hold: yes
- Min / MAX: yes
- Peak+ / Peak-: yes
- RELative ΔX: yes
- Differential ΔX / X(%): yes
- Auto Power Off : yes
- Electrical safety according to IEC 61010: 600V CAT IV
- Power supply : 1 x 9 V LF22
- Dimensions / Weight: 78 x 222 x 42 mm / 340 g

State at delivery:
- 1 set of PVC cables (black/red)
Ø 4 mm isolated elbowed male banana plug
Ø 4 mm isolated straight male banana plug
- 2 test probes (black/red): Ø 4 mm isolated female plug
- 1 black safety crocodile clip
- 1 x 9 V 6LR61 battery; 4 x 1.5V LR03 batteries for F400/600 clamps
- Multifix bag: 120 x245 x 60 mm for F200 clamps; 120 x320 x 60 mm for F400/600 clamps
