Direct access to our certified experts
13-hour battery life
Focus-free with 20° x 20° field of view
Voice annotations to record your comments directly on the image
Connectivity with current clamps and multimeters: all the necessary measurements simultaneously
Specifications
- Detector: 80 x 80
- Type; UFPA microbolometer, 8 ~14 μm
- Frequency: 9 Hz
- Sensitivity (N.E.T.D): 80 mK @ 30 °C (0.08 °C @ 30 °C)
Temperature measurement
- Temperature range: -20 °C to +250 °C
- Accuracy: ±2 °C or ±2 % of reading
Image performance
- Field of view: 20° x 20°
- IFOV (spatial resolution): 4.4 mrad
- Focus: Fixed
- Minimum focal distance: 40 cm
- Real image: Yes (320 x 240 pixels)
- Display mode: Thermal image, real image with automatic parallax compensation. Image merging available PC software
Functions for analysis
- Measurement tools: 1 manual cursor + 1 automatic detection + Min-Max on adjustable area + temperature profile + Isotherm
- Parameter settings: Emissivity, environmental temperature, distance, relative humidity
- Voice comments: Yes by Bluetooth (earphones supplied)
- Connectivity : F407 and F607 clamps, MTX 3292 and MTX 3293 multimeters
- Data storage: On 2 GB removable micro SD card (approx. 4,000 images), up to 32 GB possible
- Image format: .bmp (thermal and real images recorded simultaneously)
Presentation of image
- Adjustment: Automatic or manual adjustment of palette min-max
- Freezing of image: Animated or fixed image
- Image display: Multi-palette
- Screen: 2.8 inches
Power supply
- Type: Rechargeable NiMH batteries with low self-discharge
- Recharging: External (charger supplied)
- Battery life: 13hrs 30 min (typical) / Brightness 50 % Bluetooth off
Environmental specifications
- Operating temperature: -15 °C to +50 °C (-4 °F to +122 °F)
- Storage temperature range: -40 °C to +70 °C (-40 °F to +158 °F)
- Humidity: 10 % to 95 %
- Compliance: EN 61326-1: 2006 / EN 61010-1 Ed. 2
- Fall resistance: 2 metres on all surfaces
- Shock resistance: 25 G
- Vibration resistance: 2 G
Physical specifications
- Weight / dimensions : 700 g with rechargeable batteries / 225 x 125 x 83
- Ingress protection: IP 54
- Interfaces: USB link and Mass Storage function: the product is then recognized as a USB drive for easy transfer of the images
- Bluetooth for connectivity with earphones (voice comments) and Chauvin Arnoux®Metrix® measuring instruments (F407, F607, MTX 3292, MTX 3293): Yes, ¼’’ insert on camera
General specifications
- Supplied as standard with automatic report generation in .pdf or .docx
State at delivery: delivered in hard case with 4 NiMH batteries and battery charger, 1 micro SD HD card, 1 USB cable, 1 set of Bluetooth earphones, CAmReport software on CD ROM, user manuals.
datasheet
user guider
catalog vietnamese
catalog english
Advantages

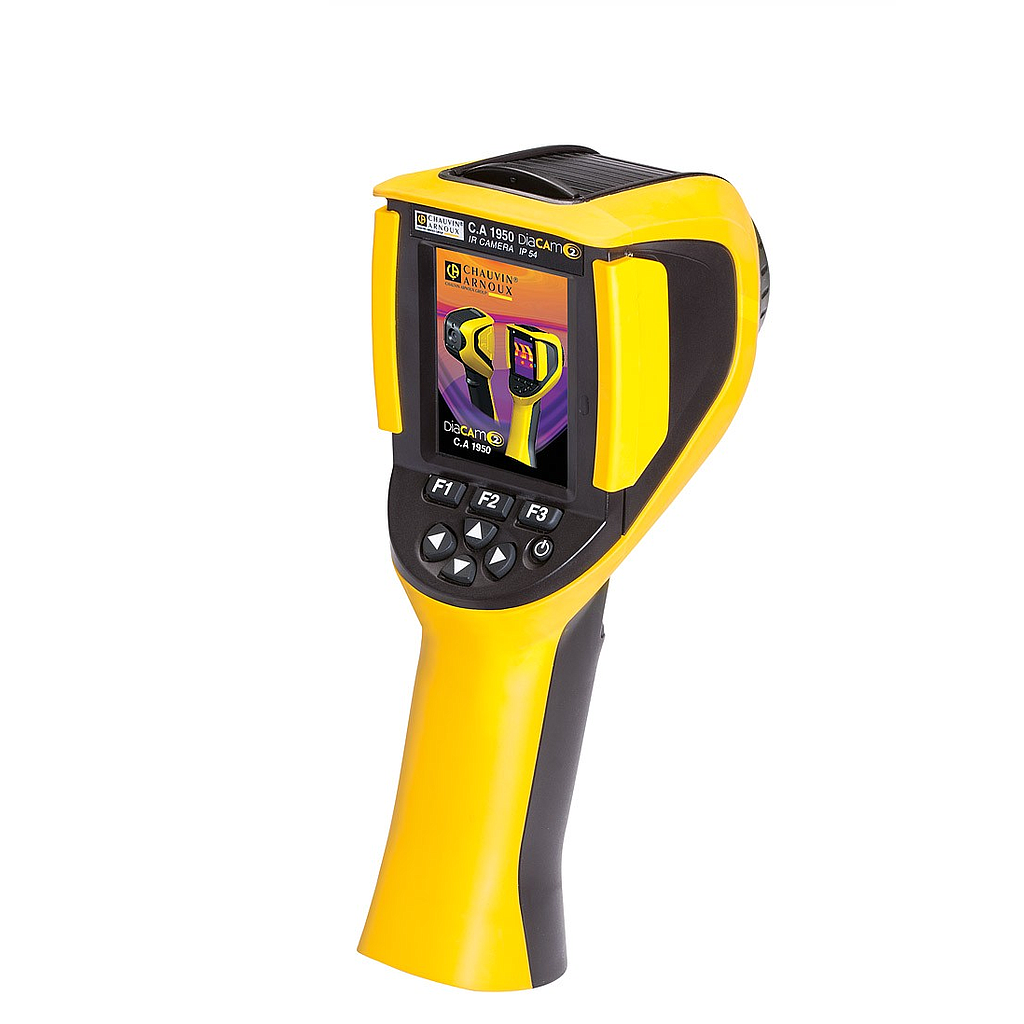

Advantages of the C.A 1950
Exceptional 13-hour battery life
Quick startup in under 3 seconds
an emissivity table which can be enhanced as required
the possibility of renaming the images and thermograms by site
recording and storage of the configurations according to the different applications (building, electrical cabinet, etc.)
vocal annotations to record your comments directly on the image
connection to current clamps and multimeters: all the necessary measurements simultaneously
