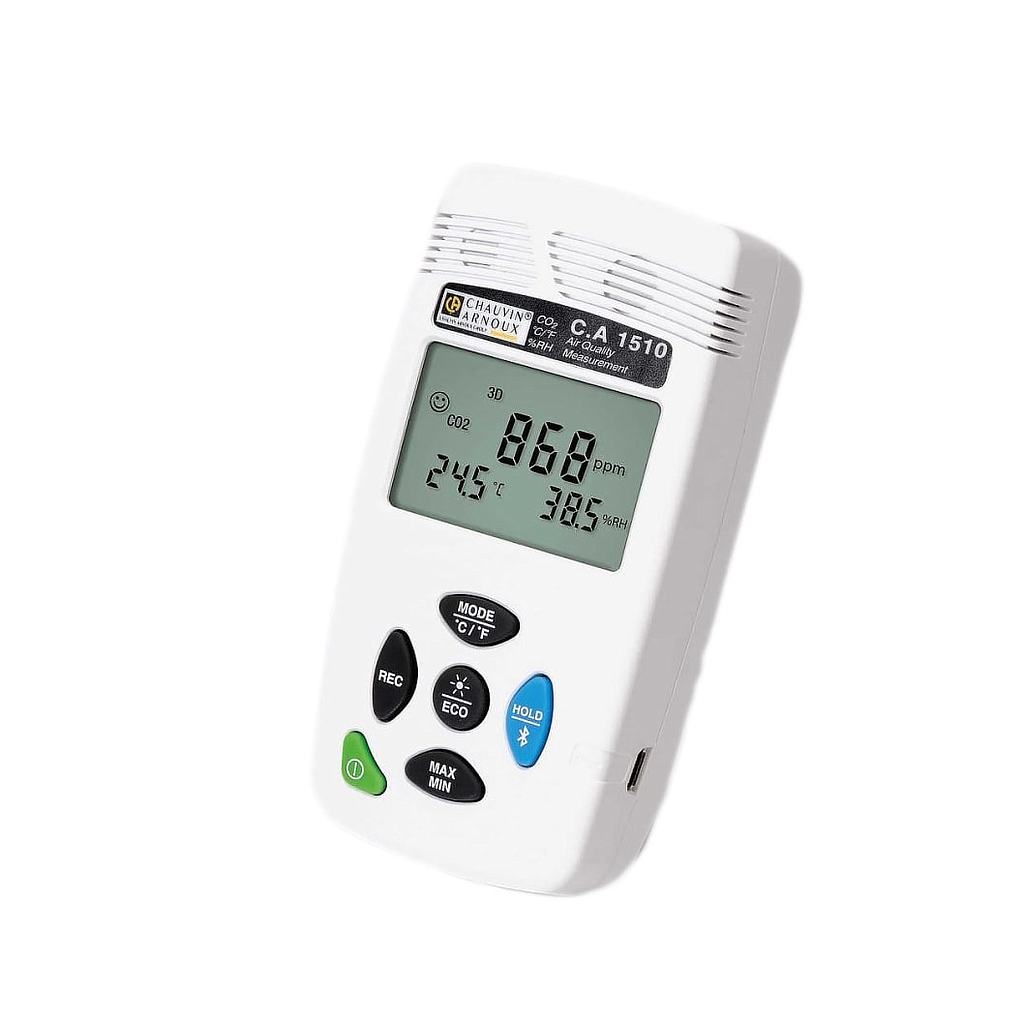

Chauvin Arnoux C.A 1510 Indoor air quality meter (CO2 0~5000 ppm, -10~60°C, 5~95%RH)

CO2 measurements

Principle / Sensor: Non-dispersive infrared technology / Dual-beam infrared cell

Measurement range: 0 to 5,000 ppm

Uncertainty / Resolution: ± 50 ppm ± 3 % of measured value / 1 ppm

Temperature

Sensor: CMOS

Measurement range / Accuracy / Resolution: -10 °C to +60 °C / ± 0.5 °C / 0.1 °C

Humidity

Sensor: Capacitive

Measurement range / Accuracy / Resolution: 5 to 95% RH / ± 2 % RH / 0.1 % RH

Use

Spot measurement

Monitoring

Logger

General technical specifications

Recording intervals Customizable: from 1 min to 2 hrs

Storage: 1 million measurements

Functions: Backlighting, HOLD, Min/Max

Communication: Bluetooth or USB

Mounting: Magnetized, wall mount, slot for suspension

Software DL Transfer: real time, data export

• 2 x LR6 batteries

• USB mains adapter

• USB-micro USB cable 1.80 m long

• Desktop stand

• Quick start-up guide

• Mini-CD containing the Data Logger Transfer software

and the user’s guides (one file per language)

• Verification attestation
