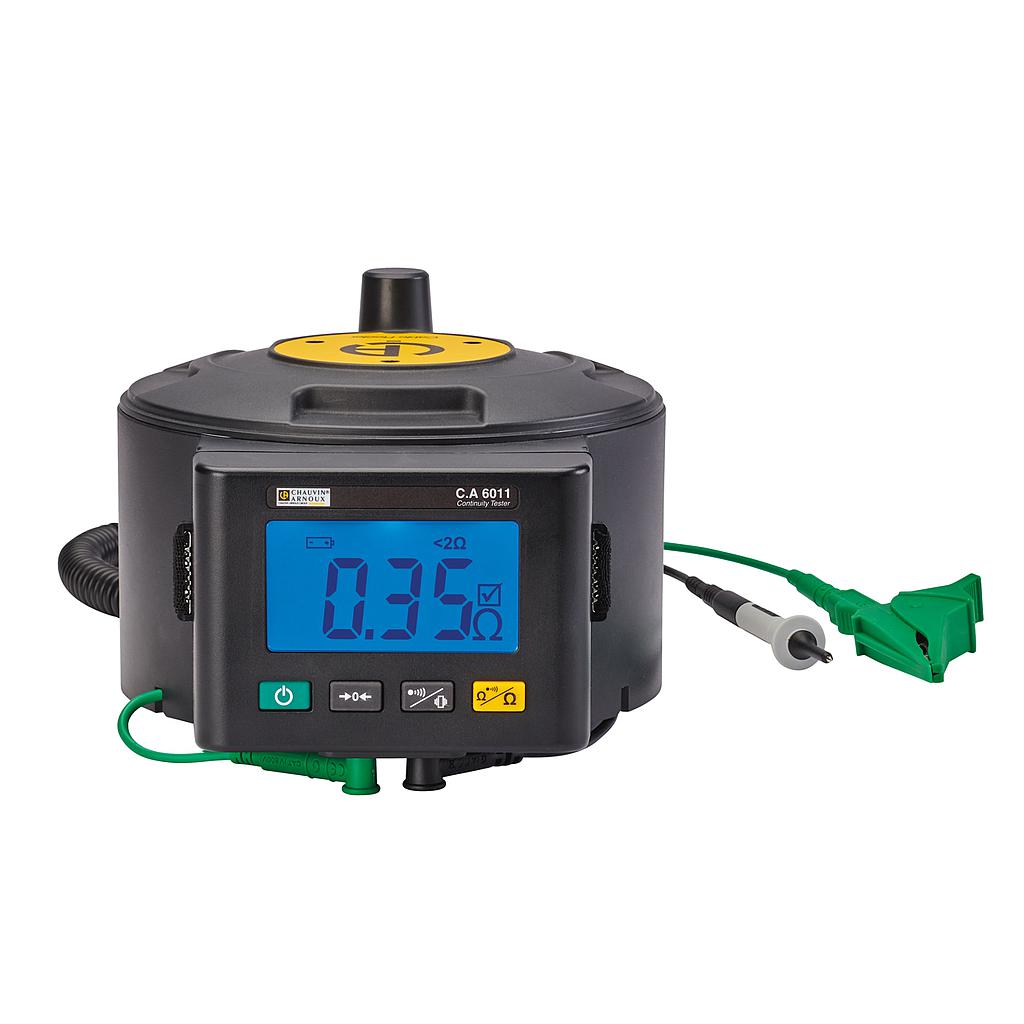

Chauvin Arnoux CA 6011 Continuity Tester ALONE

Manufacturer: Chauvin Arnoux

Model: CA 6011

Order No.: P01191611

Origin: France

Warranty: 12 months

Display: 2,000 counts with two-colour backlighting

Continuity

Range 0.00 Ω to 2.00 Ω; 10 mΩ; Measurement current 200 mA

Range 2.00 Ω to 20.00 Ω; 10 mΩ; Measurement current 20 mA

Open-circuit voltage: ±(4 VDC < U < 6 VDC)

Resistance

Measurement range: 1.0 Ω to 200.0 Ω

Resolution: 100 mΩ

Measurement current: 10 mA

Open-circuit voltage: ±(4 VDC < U < 6 VDC)

Continuity threshold: Programmable 1 Ω ru 2 Ω

Compensation of cable resistance: Yes, < 5 Ω

Indication of test compliance / non-compliance: Visual and/or audible and/or vibrating, configurable

Compliance with standards: IEC 61557-1 & IEC 61557-4

IEC 61010-1, IEC 61010-2-030 300 V CAT IV

Automatic standby: 10 minutes / deactivatable

Battery life: 30,000 measurements in real operating conditions

4,500 as per IEC 61557-4 protocol

Voltage presence: Visual and audible

Power supply: 4 standard 1.5 V AA/LR6 batteries

Dimensions (instrument + reeling box): 225 x 185 x 135 mm

Weight: CA 6011 only: 350 g – Reeling box with 30 m cable: 1.2 kg

Delivered in CA cardboard box

1 C.A 6011 measuring instrument with:

- 1 elastic strap for fixing the measurement unit to your wrist

- 1 set of 4 x 1.5V AA alkaline batteries.

- 1 set of documentation in 5 languages (F/GB/D/I/E) comprising:

- 1 verification report

Datasheet

Manual

Quick Start Guide
