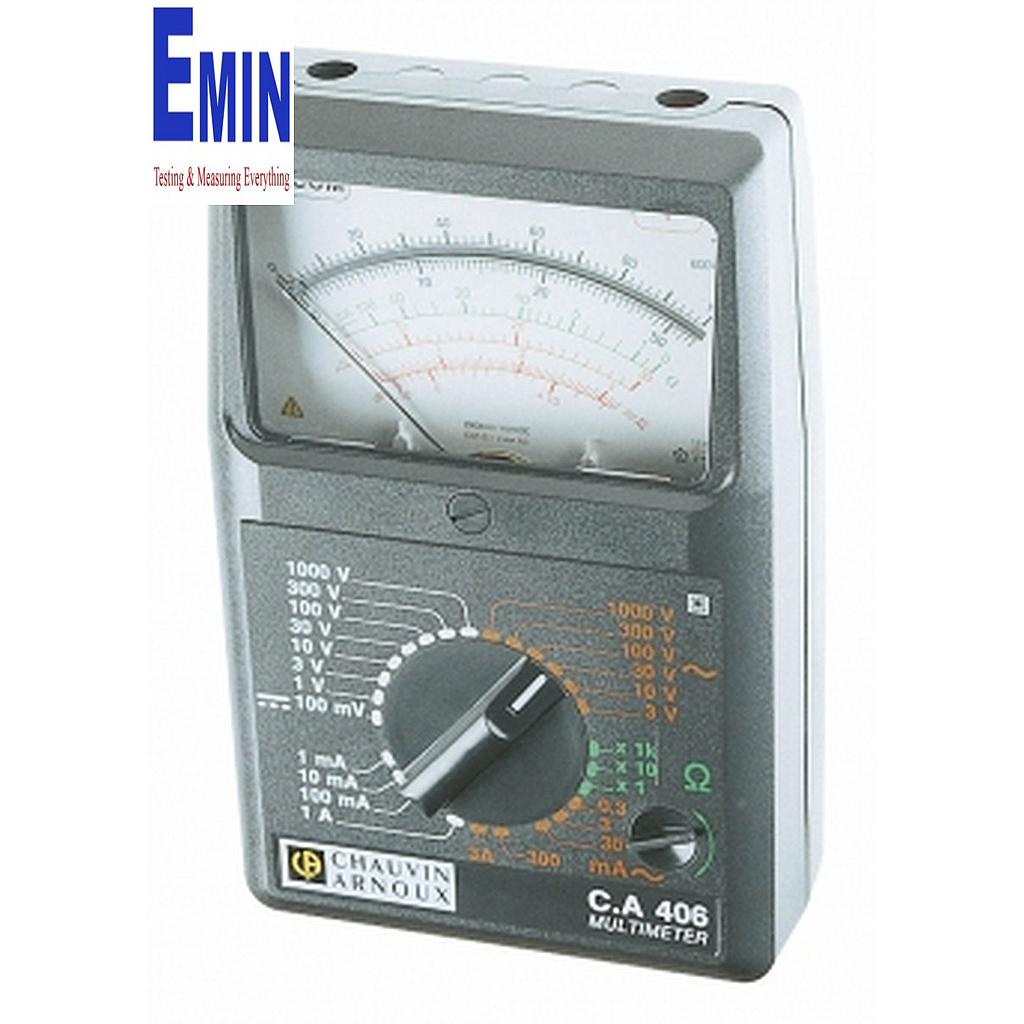

Chauvin Arnoux C.A 406 Multimeter (1000V)

Manuafacturer: Chauvin Arnoux
Model : C.A 406
Item: P01170501
Warranty : 12 month

- Magneto-electric equipment
+8 DC voltage ranges: 100 mV to 1,000 V, accuracy: ± 1.5 %
+6 AC voltage ranges: 3 V to 1,000 V, accuracy: ± 2.5 %
+4 DC current ranges: 1 mA to 1 A, 1 x 50 μA range (same switch position as the 100 mV DC range), accuracy: ± 2 %
+5 AC current ranges: 0.3 mA to 3 A, 1 x 150 μA AC range (same switch position as the 3 V AC range), accuracy: ± 2.5 % and ± 3 % for the 3 A AC range
+3 resistance ranges: 0.5 Ω - 1 kΩ to 1 MΩ, accuracy: ± 5 %
- Internal resistance : 20 kΩ / V DC and 6.32 kΩ / V AC
- Frequency response
+Reference range: 45 to 65 Hz
+Operating range: 20 Hz to 400 Hz
- Dial
+2 black scales (0 to 30 and 0 to 100)
+1 green expanded Ω scale (0 to 1,000)
+1 red A AC scale (0 to 30)
+1 red 3 V AC scale (0 to 3)
+1 red decibel scale (-10 dB to + 12 dB)
- Fuses: 3.15 A HRC and 160 mA HRC
- Dimensions and weight : 165 x 105 x 50 mm – 450 g
- Electrical safety: 600 V CAT III as per IEC/EN 61010-1 Edition 2


Accessories:
- Shockproof sheath P01298016
-Spare fuses (set of 10) 1 A HRC 380 V 50 kA fuse P03297507
+10 A HRC 380 V 50 kA fuse P03297510
+315 mA HRC 380 V 50 kA fuse P03297509
+1.25 A HRC 380 V 50 kA fuse P01297015
+6.3 A HRC 380 V 100 kA fuse P01297016
+3.15 A HRC 380 V 50 kA fuse P01100726
+160 mA 380 V 50 kA fuse P03297508

Datasheet
